HP / Keysight / Agilent 11850C Overview

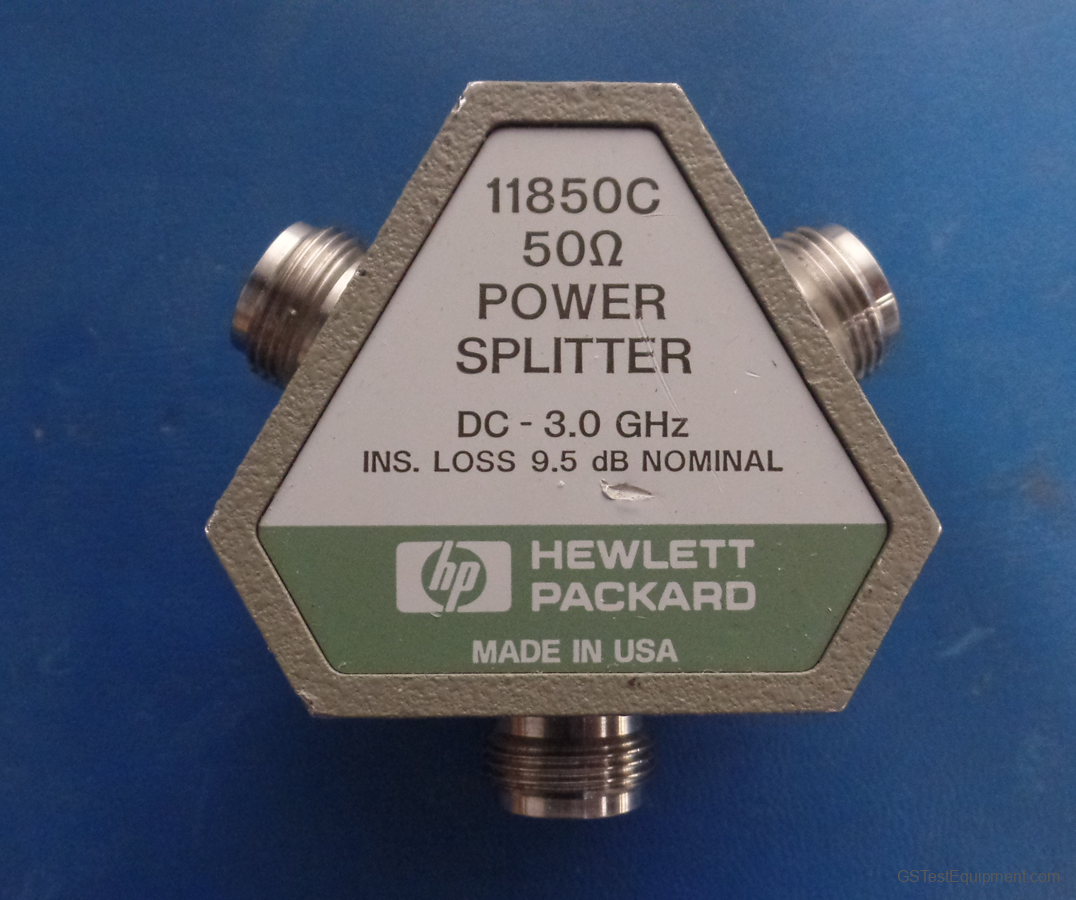

The Agilent 11850C is a 50 ohm three-way power splitter that is recommended for use with the Agilent 8753 network analyzer. Its connectors are type-N female.
Features:
Features:
- Frequency range: dc to 3 GHz
- Connectors: type-N female
- Tracking ±0.3 dB, ±3.5°
- Leveling: 20 dB at 3 GHz
- Nominal insertion loss: 9.5 dB + 1dB/GHz
- Input Port Match: dc to 1.3 GHz: 20 dB, 1.3 GHz to 3 GHz: 10 dB
