HP / Keysight / Agilent 4284A - RCL Measurement Instruments

Name: HP / Keysight / Agilent 4284A
Brand: HP / Keysight / Agilent
SKU: 4284A
Availability: InStock

Precision LCR Meter 20Hz-1MHz

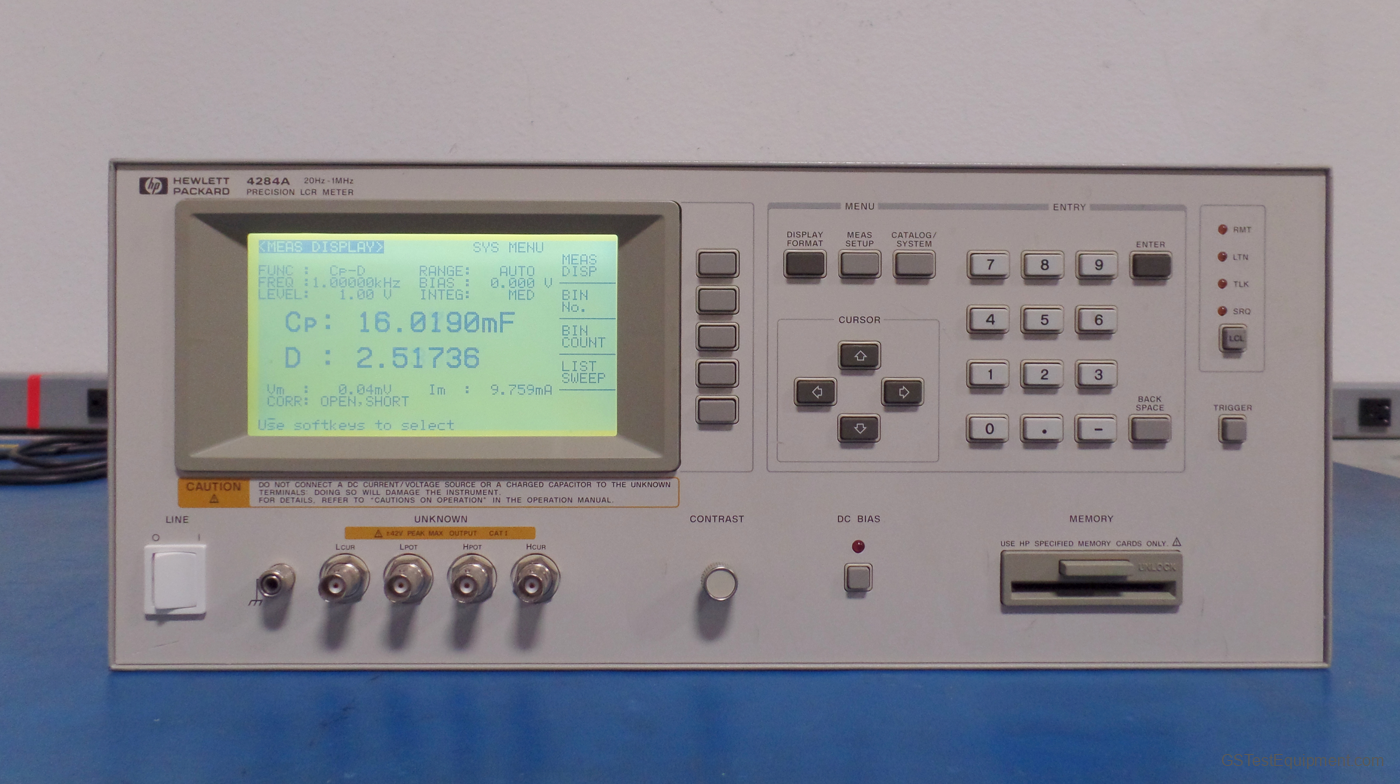

HP / Keysight / Agilent 4284A RCL Measurement Instruments - front view

Get a Quote

Sell Your 4284A

We buy used RCL Measurement Instruments equipment!

Trade-in quote →

Rent 4284A

Short-term rental options available

Rental quote →

Product Details

Model:: 4284A
Manufacturer:: HP / Keysight / Agilent
Category:: RCL Measurement Instruments
Availability:: Available - Request Quote

Can't find the exact model? Request a quote and we'll respond quickly.

HP / Keysight / Agilent 4284A Overview

The 4284A precision LCR meter is a cost-effective solution for component and material measurement. The wide 20 Hz to 1 MHz test frequency range and superior test-signal performance allow the 4284A to test components to the most commonly-used test standards, such as IEC/MIL standards, and under conditions that simulate the intended application. Whether in research and development, production, quality assurance, or incoming inspection, the 4284A will meet all of your LCR meter test and measurement requirements.

Features:

Wide Range DC Current Biased Inductance Measurement
0.05% basic accuracy
40 A DC support with the Agilent 42841A Bias Current Source Wide Range DC Current Biased Inductance Measurement

HP / Keysight / Agilent 4284A Features & Options

001 - Power Amp
006 - 2m/4m CABLE

HP / Keysight / Agilent 4284A Complete Specifications

001	High Power (20V, 200mA, 0-40V DC Bias)
002	Bias Current Interface
004	Memory Card
006	2m/4m Cable Length Operation
009	DELETE OPERATION MANUAL
109	Delete HP-IB Interface
16034E	Test Fixture (SMD Components)
16034G	SMD Test Fixture
16034H	SMD Array Type LCR Test Fixture
16044A	SMD LCR Kelvin Contact Test Fixture
16047A	Test Fixture (Axial and Radial)
16047D	Test Fixture
16047E	Test Fixture, 40 Hz to 110 MHz
16048A	Test Lead, BNC Connector to BNC Connector Board
16048D	2m BNC Test Cable
16048E	Test Leads
16065A	200 Vdc External Voltage Bias Fixture
16089A	Large Kelvin Clip Lead
16089B	Medium Kelvin Clip Lead
16089C	Kelvin IC Clip Lead
16089D	Alligator Clip Lead (4 Clips)
16089E	Kelvin Clip Leads
16092A	Spring Clip Fixture
16192A	Parallel Electrode SMD Test Fixture
16194A	High Temperature Component Test Fixture
16196A	Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196B	Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196C	Parallel Electrode SMD Test Fixture, DC to 3 GHz
16196D	Parallel Electrode SMD Test Fixture, DC to 3 GHz
16197A	Bottom Electrode SMD Test Fixture
16200B	External DC Bias Adapter
16334A	Test Fixture (Tweezers Contacts)
16380A	Standard Air Capacitor Set (1pF to 1000pF)
16380C	Capacitance Standard Set - 0.01uF to 10uF
16451B	Dielectric Test Fixture
16452A	Liquid Test Fixture
1A7	ISO 17025 Compliant Calibration
1BQ	Military Standard 45662A Calibration
201	General Purpose Handler Interface
202	Handler Interface
301	Scanner Interface
42030A	Four Terminal Pair Standard Resistor Set
42090A	Open Termination (4-Terminal Pair)
42091A	Short Termination (4-Terminal Pair)
700	Standard power (2V, 20mA, 2V DC Bias)
710	Blank panel
82357B	USB/GPIB Interface High-Speed USB 2.0
907	Front handle kit
908	Rack Flange Kit for Use without Handles
909	Front Handle & Rack Flange Kit
910	Additional operating and service manual
A6J	ANSI Z540 compliant calibration with test data
AB0	Taiwan Quick Users Guide (Chinese localization)
ABF	France Quick Users Guide (French localization)
ABZ	Italy Quick Users Guide (Italian localization)
ATO	Precision LCR meter
C2X	2x Calibration Service Agreement
C3X	3x Calibration Service Agreement
E5810A	LAN/GPIB Gateway
R24	Extended 24 Month Warranty
R36	Extended 36 Month Warranty
RC24	Extended 24 Month Warranty & 2x Calibration Service Agreement
RC36	Extended 36 Month Warranty & 3x Calibration Service Agreement
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
