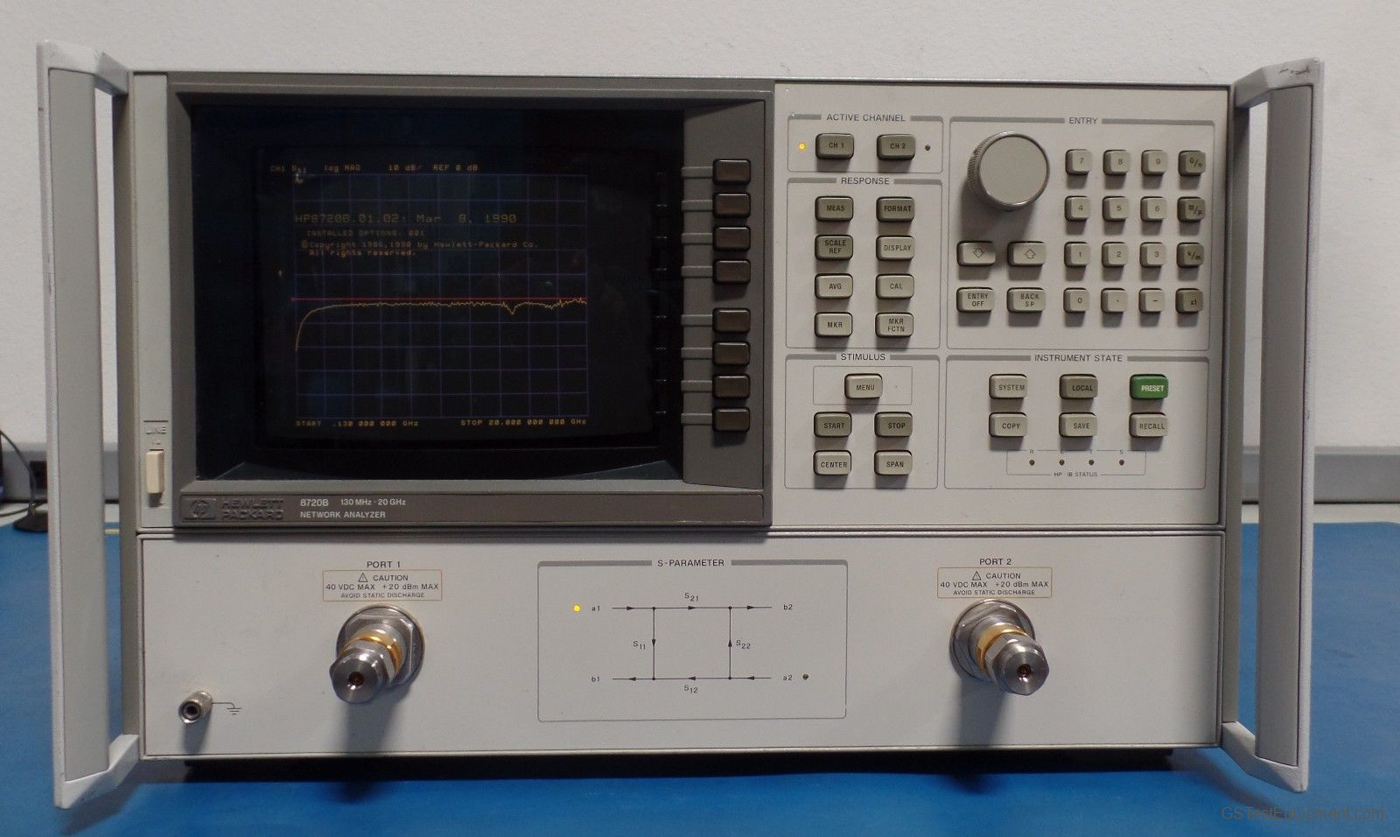

HP / Keysight / Agilent 8720C Overview
The Agilent 8720C vector network analyzer characterizes RF and microwave components down to 50 MHz and up to 20 GHz. This analyzer includes a fast-sweeping synthesized source, S-parameter test set, tuned receiver, and large color display in a single package. The Agilent 8720C is an ideal choice for cost- and space-conscious engineers in research and development, manufacturing, incoming inspection, or quality assurance.
Features:
Features:
- Fast-sweeping built-in synthesized source with optional 1 Hz frequency resolution
- Integrated switching test set measures all four S-parameters with a single connection
- Vector accuracy enhancement
- Optional time domain capability computes and displays response versus time or distance
- Optional solid state switch allows simultaneous measurement of forward and reverse parameters and continuous update for all four s-parameters as required for two-part error correction
- Productivity is enhanced with pass/fail testing, direct printer/plotter output of results, advanced marker functions, and save/recall of test configurations.
- Two independent display channels for simultaneous measurement of reflection and transmission characteristics
