HP / Keysight / Agilent E5061A-016-250 - Network Analyzers

Name: HP / Keysight / Agilent E5061A-016-250
Brand: HP / Keysight / Agilent
SKU: E5061A-016-250
Availability: InStock

Agilent E5061A ENA-L RF Network Analyzer

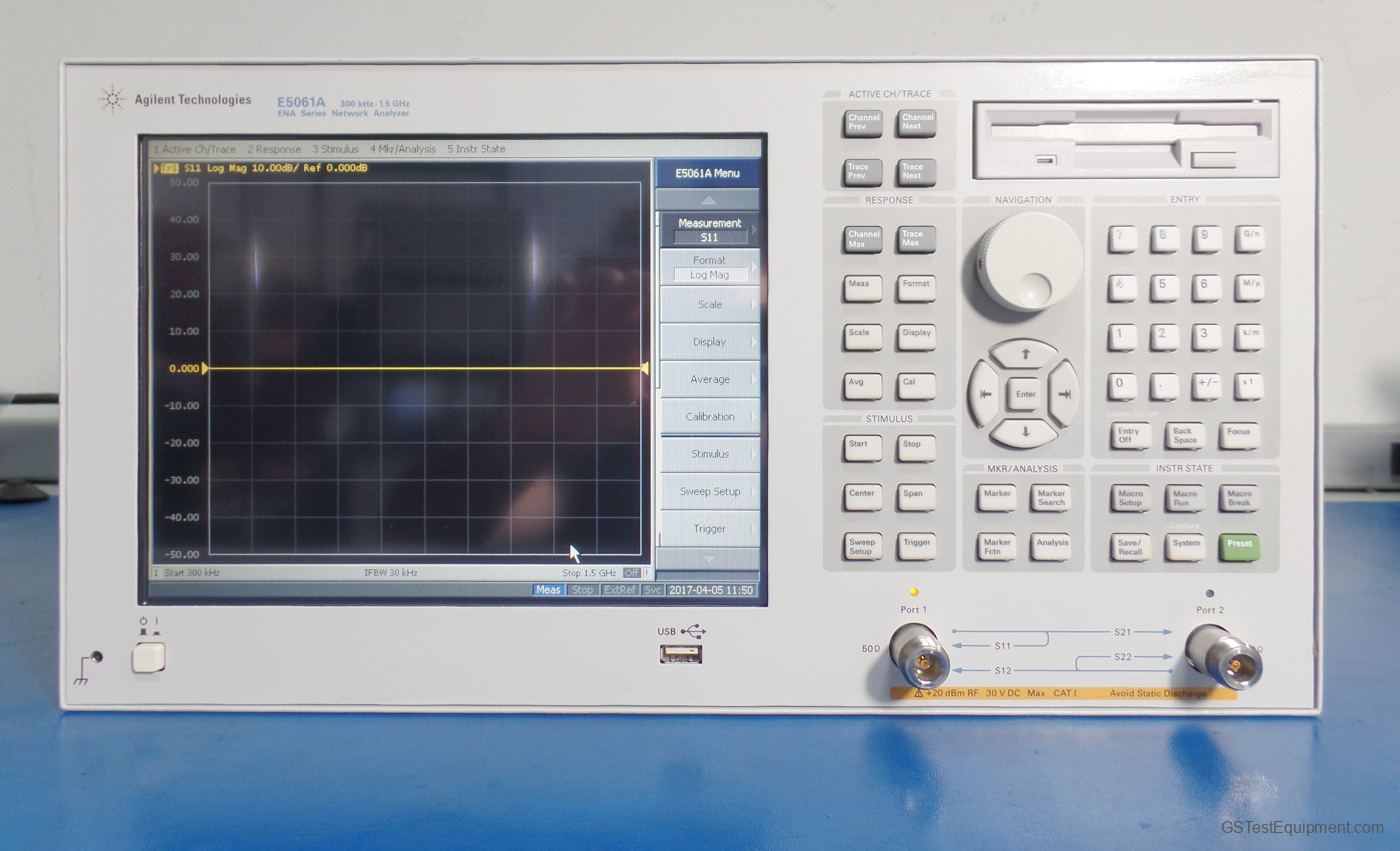

HP / Keysight / Agilent E5061A-016-250 Network Analyzers - front view

Get a Quote

Sell Your E5061A-016-250

We buy used Network Analyzers equipment!

Trade-in quote →

Rent E5061A-016-250

Short-term rental options available

Rental quote →

Product Details

Model:: E5061A-016-250
Manufacturer:: HP / Keysight / Agilent
Category:: Network Analyzers
Availability:: Available - Request Quote

Can't find the exact model? Request a quote and we'll respond quickly.

HP / Keysight / Agilent E5061A-016-250 Overview

The E5061A general purpose network analyzers provide reliable basic S-parameter measurements with easy-to-use features and solid performance based on the latest in modern technologies.

Discuss calibration, applications, programming topics: Network Analyzer Discussion Forum

Choose accessories: Network Analyzer Accessories

Support: ENA Series Service & Support Home Page

Features:

300 kHz to 1.5 GHz
Integrated T/R or S-parameter test set
50 or 75 ohm test port impedance
120 dB dynamic range and 0.005 dB rms trace noise
Built-in Visual Basic® for Applications (VBA)

016 Touch Screen Color LCD
250 S-parameter Test Set 50 ohm System Impedance with extended power rang

HP / Keysight / Agilent E5061A-016-250 Complete Specifications

015	Standard Color LCD
016	Touch Screen Color LCD
100	Add Fault Location Analysis
150	TR Test Set 50 ohm System Impedance
175	TR Test Set 75 ohm System Impedance
1A7	ISO 17025 compliant calibration
1CM	Rackmount Kit
1CN	Front Handle Kit
1CP	Handle/Rack Mount Kit
1E1	Extended Power Range
250	S-parameter Test Set 50 ohm System Impedance with extended power rang
275	S-parameter Test Set 75 ohm System Impedance with extended power rang
810	Add Keyboard
820	Add Mouse
A6J	ANSI Z540 Compliant Calibration
AB1	Korea Quick Users Guide (Korean localization)
AB2	China Quick Users Guide (Chinese localization)
ABA	U.S. Quick Users Guide (English localization)
ABD	Germany Quick Users Guide (German localization)
ABE	Spain Quick Users Guide (Spanish localization)
ABF	France Quick Users Guide (French localization)
ABJ	Japan Quick Users Guide (Japanese localization)
ABZ	Italy Quick Users Guide (Italian localization)
AJ6	ANSI Z540 Compliant Calibration
PS-S20	Startup assistance
R-50C-001-3C	1 year Return-to-Agilent warranty extended to 3 years
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-50J-001-3	Onsite System Verification - 3 years
R-50U-001-3	Onsite Agilent Calibration - 3 years
R-50U-002-3	Onsite ANSI Z540-1-1994 Calibration - 3 years
R-51B-001-3C	Return to Agilent Warranty - 3 years
R-51B-001-5C	Return to Agilent Warranty - 5 years
R-51B-001-C	Return to Agilent Warranty - 1 year
R-51C-001-1CU	Onsite Warranty - 1 year
R-51C-001-3CU	Onsite Warranty - 3 years
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6	Commercial calibration with test results data
