HP / Keysight / Agilent E5071C-019-1E5-280 - Network Analyzers

Name: HP / Keysight / Agilent E5071C-019-1E5-280
Brand: HP / Keysight / Agilent
SKU: E5071C-019-1E5-280
Availability: InStock

ENA Series Network Analyzers, 9 kHz to 8.5 GHz

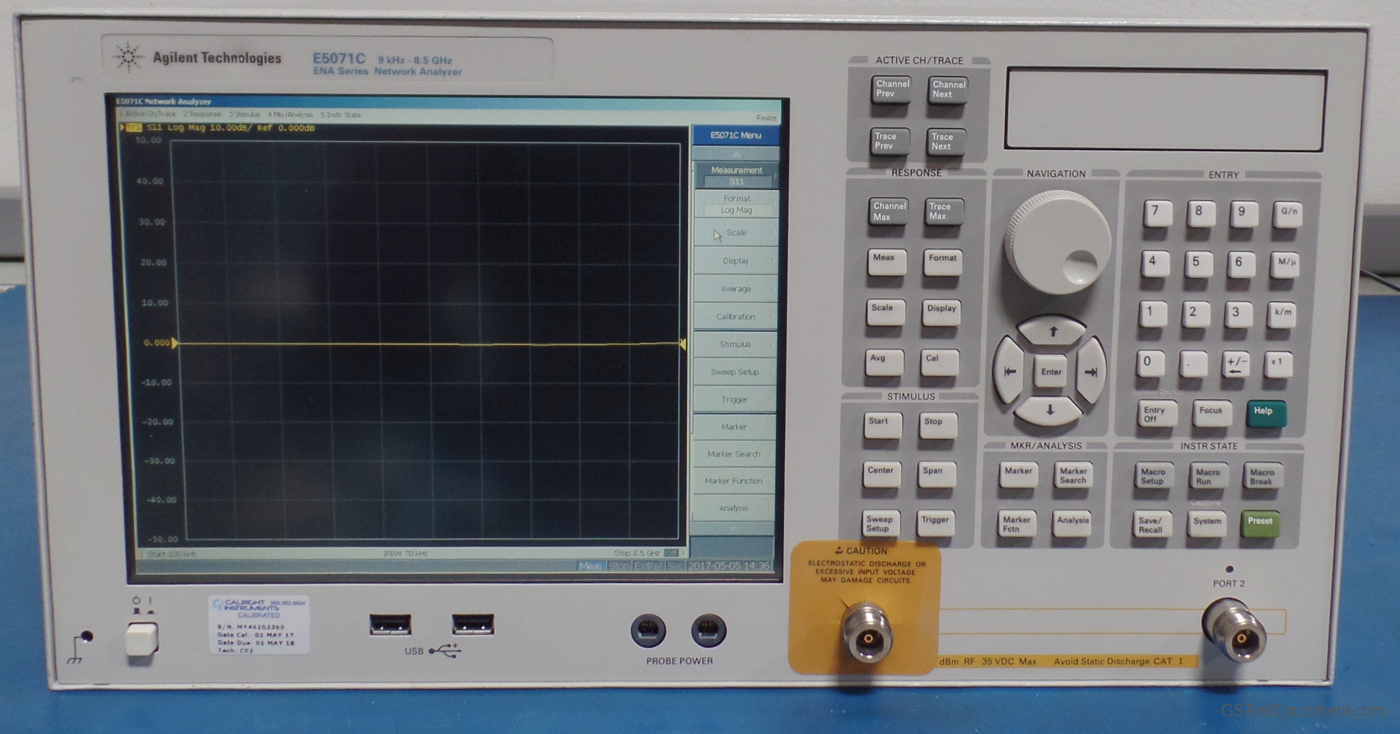

HP / Keysight / Agilent E5071C-019-1E5-280 Network Analyzers - front view

Get a Quote

Sell Your E5071C-019-1E5-280

We buy used Network Analyzers equipment!

Trade-in quote →

Rent E5071C-019-1E5-280

Short-term rental options available

Rental quote →

Product Details

Model:: E5071C-019-1E5-280
Manufacturer:: HP / Keysight / Agilent
Category:: Network Analyzers
Availability:: Available - Request Quote

Can't find the exact model? Request a quote and we'll respond quickly.

HP / Keysight / Agilent E5071C-019-1E5-280 Overview

The E5071C network analyzer offers the highest RF performance and fastest speed in its class, with a wide frequency range and versatile functions. The E5071C is the ideal solution for manufacturing and R&D engineers evaluating RF components and circuits for frequency range up to 8.5 GHz.

Features:

Wide dynamic range: > 123 dB dynamic range at test port (typical)
Fast measurement speed: 41 ms @ full 2-port cal, 1601 points
Low trace noise: 0.004 dB rms @ 70 kHz IFBW
Integrated S-parameter test set
Port options: 2-port and 4-port
Balanced measurements (4-port option)
Frequency options: From 9 kHz - 4.5 GHz/6.5 GHz/8.5 GHz
Built-in Visual Basic for Applications (VBA)

Maximum Frequency 8.5 GHz Dynamic Range 123 dB Output Power 10 dBm Trace Noise 0.003 dBrms Number of Built-In Ports 2 ports Harmonics -25 dBc Noise Floor -131 dBm Best Speed at 201 Point, 1 Sweep 5 ms Applications

S-Parameters
Multiport
Balance Measurements

HP / Keysight / Agilent E5071C-019-1E5-280 Features & Options

019 Standard hard disk drive
1E5 High stability timebase
280 2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees

HP / Keysight / Agilent E5071C-019-1E5-280 Complete Specifications

008 Frequency offset mode 010 Time domain analysis 017 Removable hard disk drive 019 Standard hard disk drive 1A7 ISO 17025 compliant calibration 1CM Rack mount kit 1CN Front handle kit 1CP Rack mount and front handle kit 1E5 High stability timebase 230 2-port Test Set, 9 kHz to 3 GHz without Bias Tees 235 2-port Test Set, 100 kHz to 3 GHz with Bias Tees 240 2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees 245 2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees 260 2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees 265 2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees 280 2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees 285 2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees 2D5 2-port Test Set, 300 kHz to 14 GHz with Bias Tees 2K5 2-port Test Set, 300 kHz to 20 GHz with Bias Tees 430 4-port Test Set, 9 kHz to 3 GHz without Bias Tees 435 4-port Test Set, 100 kHz to 3 GHz with Bias Tees 440 4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees 445 4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees 460 4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees 465 4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees 480 4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees 485 4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees 4D5 4-port Test Set, 300 kHz to 14 GHz with Bias Tees 4K5 4-port Test Set, 300 kHz to 20 GHz with Bias Tees 4K5 4-port Test Set, 300 kHz to 20 GHz with Bias Tees 790 Measurement wizard assistant software 810 Add keyboard 820 Add mouse 903 Power cord A6J ANSI Z540 compliant calibration DM1 Accessories for Demo Unit E5092A Configurable Multiport Test Set PS-S20 Startup assistance R-50C-011-3 Agilent Calibration - 3 years R-50C-011-5 Agilent Calibration - 5 years R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years R-50J-001-3 Onsite System Verification - 3 years R-50U-001-3 Onsite Agilent Calibration - 3 years TDR Enhanced Time Domain Analysis UNQ Standard stability timebase
