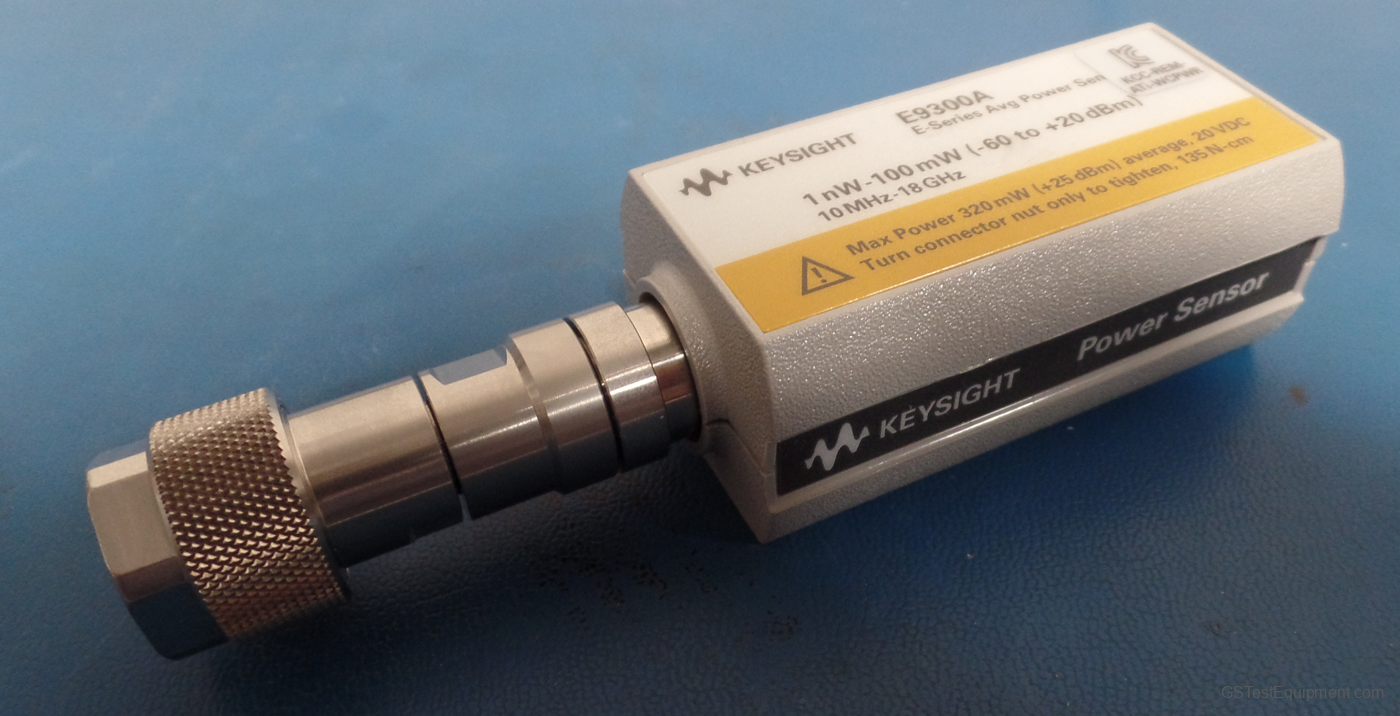

HP / Keysight / Agilent E9300A Overview
The E9300A Average Power Sensor with a wide dynamic range of -60 dBm to +20 dBm and frequency range of 10MHz to 18GHz is designed for use with the EPM and EPM-P series power meters for measurements on all types of modulated signals, from complex digital modulation formats, such as W-CDMA, CDMA (IS-95), TDMA and OFDM, to multi-tone and CW signals. Also, for comprehensive error correction, the sensor''s calibration factors, linearity and temperature compensation data are stored in EEPROM. The sensor''s power measurements are traceable to the U.S. National Institute of Standards and Technology (NIST).
Features:
Features:
- Measure the average power of all modulation formats
- Wide dynamic range (-60 dBm to +20 dBm) and frequency range 10 MHz to 18 GHz
- High maximum power specification
- Low SWR for reducing mismatch uncertainty
- Calibration factors, linearity and temperature compensation data stored in EEPROM
- Fast measurement speeds (up to 400 readings per second with the E4416A)
- Compatible with EPM, EPM-P and P-series power meters
