HP / Keysight / Agilent EPM-442A Overview

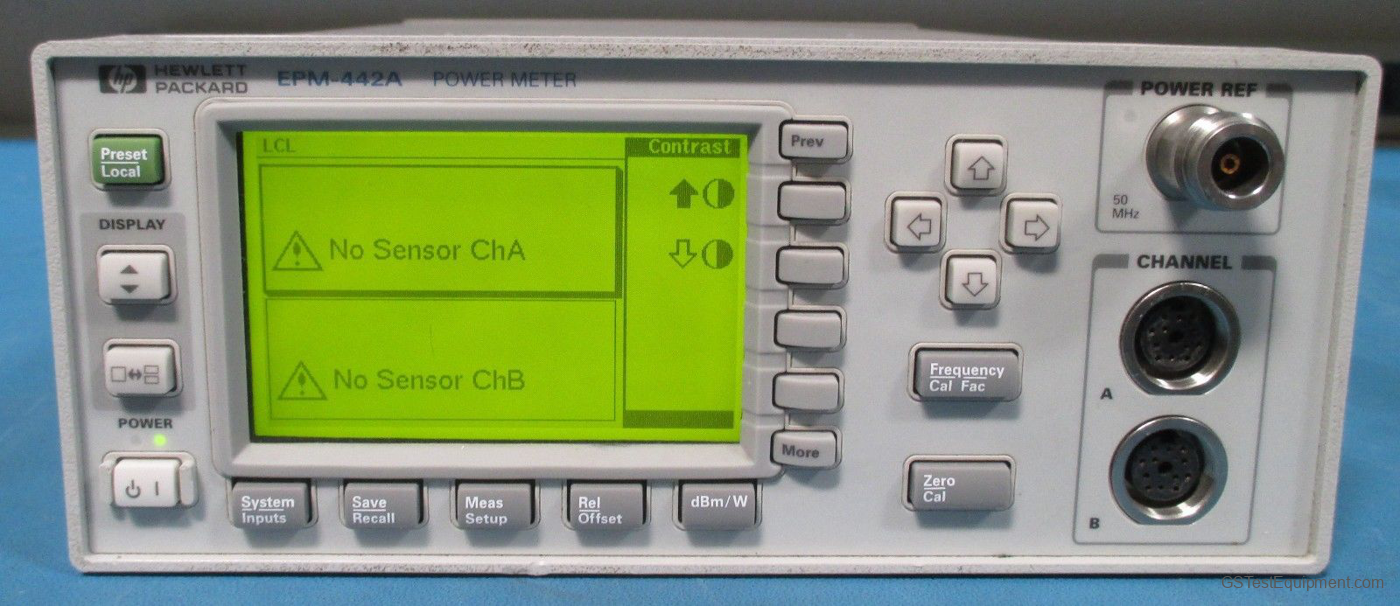

The Agilent EPM-442A is a Dual-Channel Power Meter.
Performance Characteristics
Performance Characteristics
- Form Factor: Benchtop
- Number of Channels: 2 ch
- Minimum Frequency: 100 kHz
- Maximum Frequency: 110 GHz
- Minimum Power: 0.0001 uW
- Maximum Power: 25.119 Watts
- Maximum Dynamic Range: 90 dB
- Minimum Log Display Resolution: 0.001 dB
- Maximum Log Display Resolution: 1 dB
- Accuracy: 0.5 %
- Power Reference: 1 mW
- Power Reference Accuracy: 1.2 %
- Measurement Throughput: 0.01 s
- User Interface: Proprietary
- Ports to Peripheral Devices: HPIB
- Test Pattern Storage: 10 Patterns
