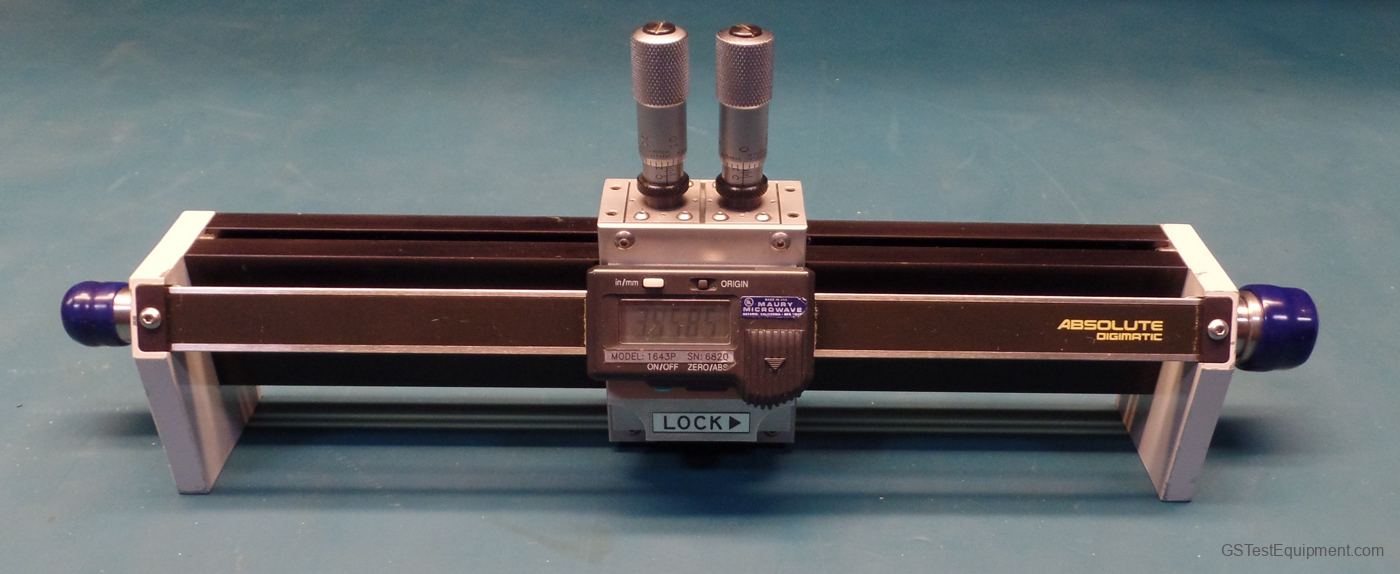

Maury 1643P Overview
- Slab-line Transmission Structure
- Dual Probes for Improved Matching Characteristics
- LCD Readout for Carriage Position
- Frequency Range 0.8 - 18 GHz
- Insertion Loss (Dissipative) 0.75 dB Max,Max VSWR with Probe Out: 1.15 Max
- Nominal Impedance: 50 Ohm
- Travel at Lowest Frequency: 1/2 Wavelength Minimum
- Matching Range: 6:1 Minimum
- Power Handling:
- CW: 50W
- Peak: 0.5kW
