Bird Electronics 100-T-FN

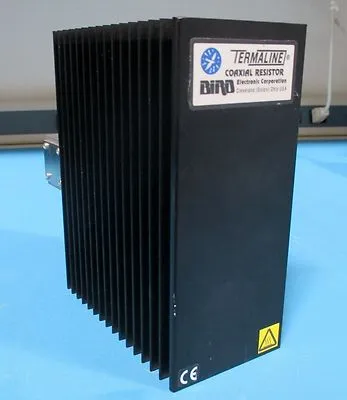

Bird 100-T-FN Convection-Cooled Dry Termination 2.4 GHz, 100 W (GS187)

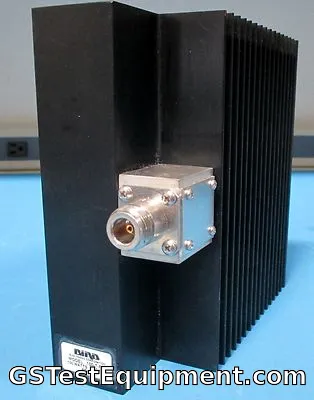

Bird Electronics 100-T-FN - main view
$345.00

Condition: Used

Product Details

Model:
100-T-FN
Manufacturer:
Bird Electronics
Category:
Termination
Condition:
Used
Availability:
In Stock - Ready to Ship

Specifications

Brand:
BIRD
Model:
100-T-FN

Product Description

Bird 100-T-FN Convection-Cooled Dry Termination 2.4 GHz, 100 W

Description

Bird's RF terminations are world renowned for their high-quailty, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.

Wide variety of connectors

Rugged Reliability provides years of trouble free use

Compact size, easily transportable benchtop design

High Quality Construction

Key Features & Specifications

Item No

100-T Series

Item Name

100 Watt, Convection-Cooled Dry Terminations

Power Rating

100 W

Frequency Rangeand VSWR

DC to 1 GHz @ 1.10:1 max.
1 GHz to 2.4 GHz @ 1.25:1 max.

TempertureRange

-40 to +40 °C

Product Type

Dry (Convection-Cooled)

Operating Position

Vertical

Connectors

N, BNC, 7/16 DIN

Finish

Black Anodized Fins, Silver or Tri-Alloy Plated connector

Dimensions

(with N-type connector): 6.4" x 2.6" x 7.0" (L x W x H)
162.6 x 66.1 x 172.8 mm

Weight

3.6 lbs. (1.64 kg)



.
