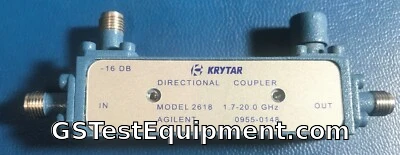

Krytar 2618 Directional Coupler 1.7-20GHz Keysight p/n  0955-0148

FREQUENCY RANGE 1.7-20 GHz

COUPLING (with respect to output)

 Nominal 16 ± 1 dB

 Frequency Sensitivity ± 0.4 dB, 1.7-18 GHz

± 0.55 dB, 1.7-20 GHz

DIRECTIVITY > 15 dB, 1.7-18 GHz

> 13 dB, 18-20 GHz

MAXIMUM VSWR (any port) 1.35, 1.7-18 GHz

1.45, 18-20 GHz

INSERTION LOSS < 0.8 dB, 1.7-18 GHz

(includes coupled power) < 1.0 dB, 18-20 GHz

POWER RATING (input)

 Average 20 W

 Peak 3 KW

STANDARD CONNECTORS 3.5mm Female

 Optional: 3.5mm Male

WEIGHT (ounces) 1.9

OPERATING TEMPERATURE -54º to +85º C
