Product Description

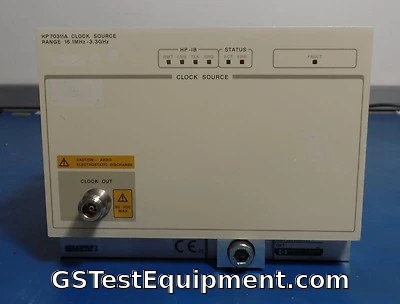

The HP/Agilent 70311A is a 3GHz Signal Source Clock Module and occupies 4 MMS module slots. It provides a variable synthesized clock signal to the pattern generator.
Other features and specifications include:
Other features and specifications include:
- Frequency Range: 16 MHz to 3.3 GHz in 1 Hz steps.
- Stability: ± 2 ppm/year after 1 year aging. ± 6 ppm over 0 to 40°C
- Spectral Purity (harmonics): <-30 dBc.
- SSB phase noise (3.3 GHz carrier): -75 dBc/Hz at 1 kHz offset; -115 dBc/Hz at 20 kHz offset
- Output level: ±3 dBm.
- Interface: ac coupled, 50 ohm, N-type female connector.
