Product Description

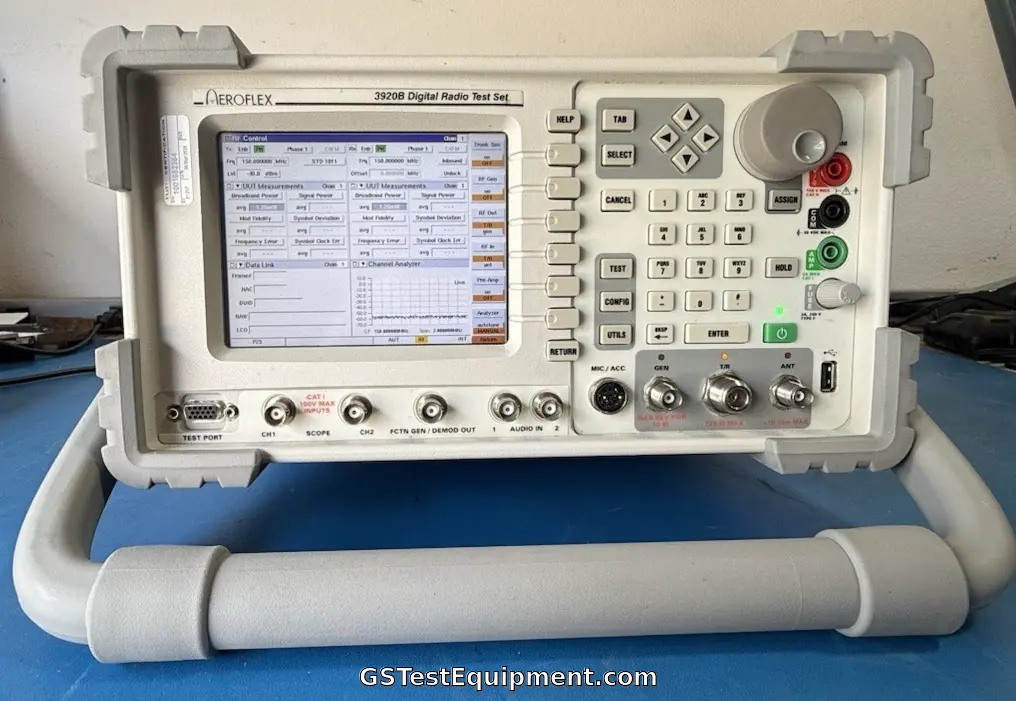

VIAVI Aeroflex 3920B Analog/Digital Radio Test Platform P25 DMM APX7000 APX8000

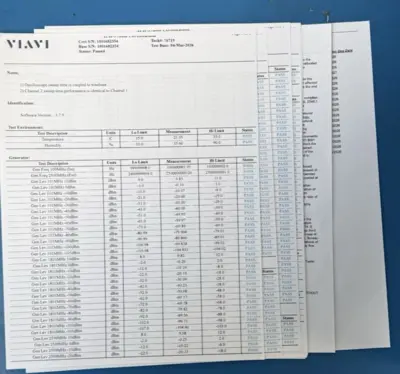

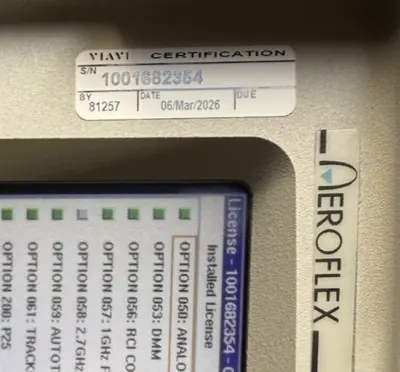

Recent calibration with data by Viavi

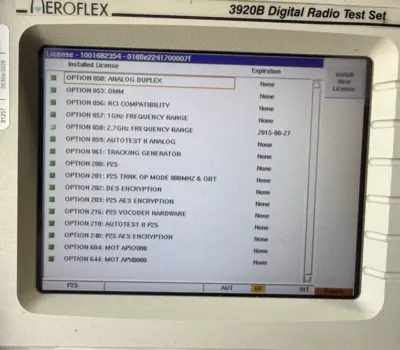

Configured with the following options:
50/53/56/57/59/61/200/201/202/203/216/218/240/604/644 Please Note that option 058 expired
see below the option decrprictions
Core Measurement / Hardware Options
Option Description
50 Analog Duplex – Enables duplex testing of analog radios (simultaneous transmit/receive measurements).
53 Digital Multimeter (DMM) – Built-in digital multimeter function for voltage/current/resistance measurements.
56 RCI Compatibility – Support for RCI radio service software integration (used for certain radio alignment/control environments).
57 (Application Support Option) – Enables additional internal radio test applications / compatibility modules used by certain vendor radio service software.
59 Auto-Test II – Analog Radios – Automated alignment and test scripts for analog radios.
61 Tracking Generator – Adds a swept RF output for cable, filter, and duplexer testing with the spectrum analyzer.
APCO P25 Digital Radio Options
Option Description
200 P25 Conventional Operation – Enables testing of APCO P25 conventional digital radios including DES-OFB Type III encryption capability.
201 P25 Trunking Operation – Adds support for P25 trunked systems (VHF/UHF/700/800 MHz). Requires option 200.
202 DES Encryption Support – Allows testing radios using DES encryption within the P25 system.
203 (Additional P25 feature module) – Adds extended P25 signaling and protocol support depending on software version (often related to trunking/advanced analysis modules).
P25 Hardware / Automation
Option Description
216 P25 Vocoder Hardware – Dedicated hardware for generating and decoding P25 digital voice signals.
218 Auto-Test II for P25 – Automated test and alignment environment for P25 radios (requires option 200).
240 P25 AES Encryption – Support for testing radios using AES encryption in P25 systems.
Vendor-Specific Radio Test Applications
Automated alignment/test suites for specific radio families.
Option Description
604 Motorola APX Test & Alignment Application – Automated alignment and testing for Motorola APX series radios.
644 APX 8000 Auto-Test / Alignment – Extended automated testing specifically for Motorola APX-8000 radios (requires option 604).
