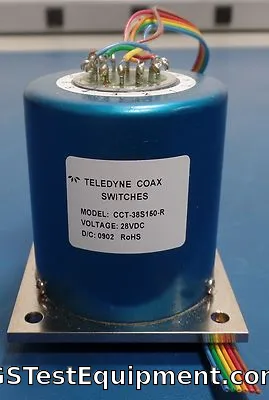

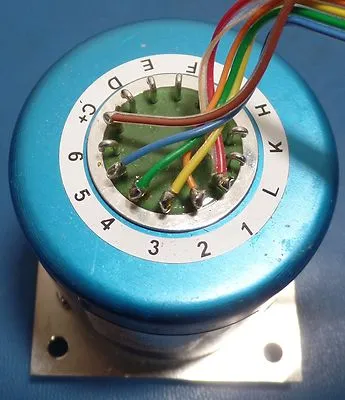

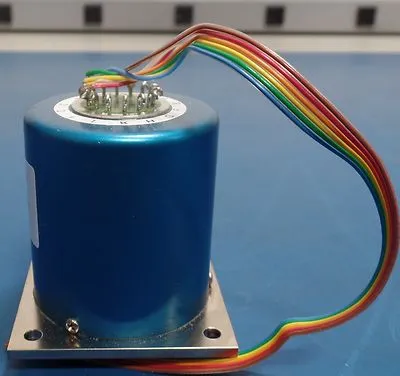

Teledyne CCT-38S150-R

Teledyne CCT-38S150-R Normally Open Multi-throw SMA Coaxial Switch,

 DC-18GHz

Description:

The CCT-38S/CT-38S is an internally terminated, broadband, multi-throw, electromechanical coaxial switch designed to switch a microwave signal from a common input to any of 3, 4, 5, or 6 outputs. The characteristic impedance is 50 Ohms. Internal terminations provide an impedance match for the unselected ports. The switches are small using the popular connector spacing on a 1.062” dia. circle. Each position has an individual actuator mechanism allowing random position selection. This also minimizes switching time.

Specifications:

Form Factor: Multi-Throw, break before make

Frequency Range: DC–18 GHz

Characteristic Impedance: 50 Ohms

Terminations: 50Ω, 2 Watts CW max.

Operate Time: 15 ms (max.)

Release Time: 15 ms (max.)

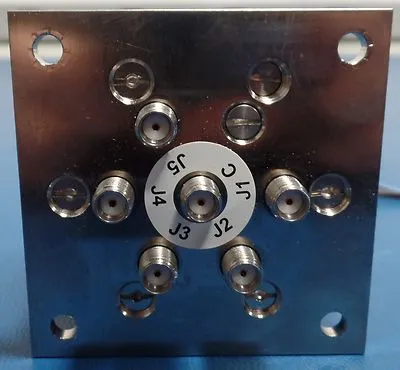

Connector Type: SMA
