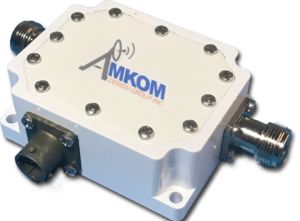

Amkom Design AMBT-05 Overview
Features:
- Super Compact, Robust & Mountable
- Pass - through IF (L-Band), FSK, and 10 MHz Reference
- Hermetically Sealed & IP 67 Rated
- Internal Polarity Protection
- Low Insertion and Return Loss
- Built - in DC filters
- 5 Year Warranty
Design Overview:
We put our in-house brilliant minded engineers to design and perfect the Universal Indoor & Outdoor Bias T, which not only sustains its precision performance with its ability to work in the harshest environmental conditions with BUCs and LNBs, and it can also reliably be used for many years requiring virtually no maintenance. Hundreds of these units are used across the globe in various SATCOM applications such as Ground Station, Airborne, Marine, Mobile and Manpack type terminals.
TECHNICAL SPECIFICATIONS
IF Input Signals Pass-through IF (L-Band), FSK, and 10MHz Referece from Modem
IF Frequency Input 950 to 2150 MHz
FSK Frequency Input 550 - 750 kHz
External Auxilary DC Input Range 12 to 60 Vdc, up to 5A
DC Input Connector 2 Pin, Pin A (+) | Pin B (- )
Reference Input 10 MHz
Low Insertion Loss IF 0.8 dB max over temp
Low Insertion Loss FSK 1.5 dB max over temp
Low Insertion Loss 10MHz 0.8 dB max over temp
Coax Input / Output Connector N-type / N-type
Operating | Storage Temperature - 40 to + 60 °C | - 60 to + 85 °C
Relative Humidity 100% non-condensing
Weatherproof Rating Compliant with IP 67
Dimensions 2.9” x 2.3” x 1.1” inches (73.2 mm x 58.2 mm x 27 mm)
Weight 0.5 lbs (225 g)
TECHNICAL SPECIFICATIONS
IF Input Signals Pass-through IF (L-Band), FSK, and 10MHz Referece from Modem
IF Frequency Input 950 to 2150 MHz
FSK Frequency Input 550 - 750 kHz
External Auxilary DC Input Range 12 to 60 Vdc, up to 5A
DC Input Connector 2 Pin, Pin A (+) | Pin B (- )
Reference Input 10 MHz
Low Insertion Loss IF 0.8 dB max over temp
Low Insertion Loss FSK 1.5 dB max over temp
Low Insertion Loss 10MHz 0.8 dB max over temp
Coax Input / Output Connector N-type / N-type
Operating | Storage Temperature - 40 to + 60 °C | - 60 to + 85 °C
Relative Humidity 100% non-condensing
Weatherproof Rating Compliant with IP 67
Dimensions 2.9” x 2.3” x 1.1” inches (73.2 mm x 58.2 mm x 27 mm)
Weight 0.5 lbs (225 g)
