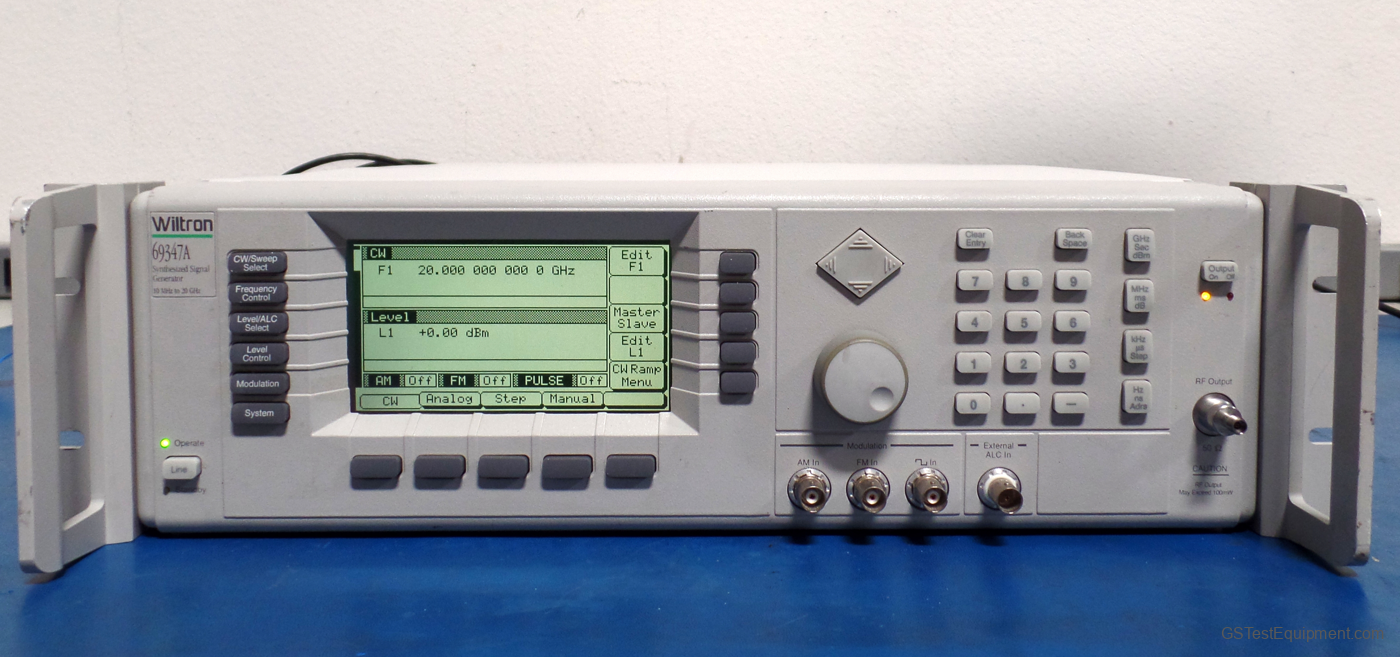

- Anritsu 69347A-2A-11
Ultra Low Noise Sweep/Signal Generator, 0.01GHz-20GHz
-
Do you have a 69347A-2A-11 you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting
Anritsu 69347A-2A-11 Overview
The Series 692XXA Synthesized Signal Generator and the Series 693XXA Synthesized Signal Generator are microprocessor-based, synthesized signal sources with high resolution phase-lock capability. They generate both discrete CW frequencies and broad (full range) and narrow band sweeps across the frequency range of 10 MHz to 65 GHz. All functions of the signal generators are fully controllable locally from the front panel or remotely (except for power on/standby) via the IEEE-488 General Purpose Interface Bus (GPIB). The Series 692XXA Synthesized Signal Generator and the Series 693XXA Synthesized Signal Generator each presently consists of 15 models covering a variety of frequency ranges and power levels.
Anritsu 69347A-2A-11 Options
2A - 0.1 Hz frequency resolution (provides frequency resolution of 0.1 Hz)
11 - 110 dB Step Attenuator. Adds a 10 dB per step attenuator with a 110 dB range for models having a high-end frequency of 20 GHz. Output power is selected directly in dBm on the front panel (or via GPIB). Rated output power is reduced.
