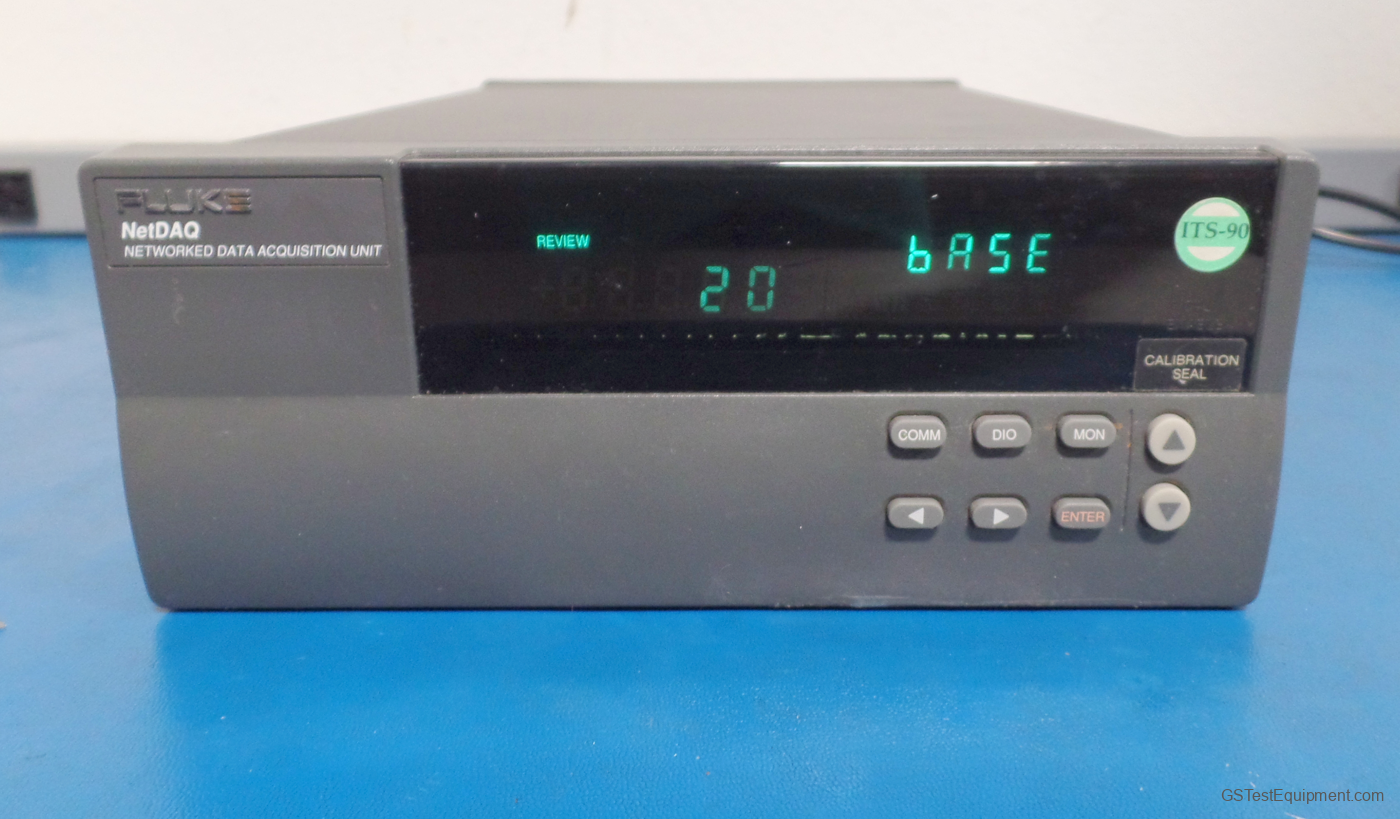

Fluke 2640A NetDAQ Data Acquisition Unit w/o Module
Get a Quote Add to Quote List

Model:2640A

Manufactured by: Fluke

Category:Data Acquisition Systems

Can’t find the exact model you need? Click Get a Quote and we’ll respond quickly with details.

Fluke 2640A - Data Acquisition Systems

Fluke 2640A Overview

Fluke 2640A Performance Characteristics:

  • Form Factor: Benchtop
  • Simultaneous Channels: 20 ch
  • Number of Bits: 18 bits
  • Measurement Parameter: ACC,ACV,DCC,DCV,Frequency,Resistance,RTD,Thermocouple
  • Sampling Rate: 1000 Sa/s
  • Minimum Frequency: 15 Hz
  • Maximum Frequency: 1 MHz
  • DC Volts Minimum Range: 90 mV
  • DC Volts Maximum Range: 300 V
  • DC Volts Minimum Resolution: 0.1 uV
  • DC Volts Maximum Resolution: 1 mV
  • DC Volts Basic 1 yr accuracy: 0.01 %
  • AC Volts Minimum Range: 300 mV
  • AC Volts Maximum Range: 300 V
  • AC Volts Minimum Resolution: 10 uV
  • AC Volts Maximum Resolution: 10 mV
  • AC Volts Basic 1 Year Accuracy: 0.3 %
  • Resistance Minimum Range: 300 Ohm
  • Resistance Maximum Range: 3 MOhm
  • Resistance Minimum Resolution: 0.01 Ohm
  • Resistance Maximum Resolution: 100 Ohm
  • Resistance Basic 1 yr accuracy: 0.05 % Fluke Precision (Fluke) 2640A Measurements/Features:
  • expandable to 400 channels
  • 18 bit Resolution
  • totalizer input ch 4mil count
  • measure 300V at up to 100 rps
  • No.of Simultaneous Ch:20-400

    • Fluke 2640A All Available Options Expand
