- Keithley Instruments 77154
High Voltage Scanner Card
-
Do you have a 77154 you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting

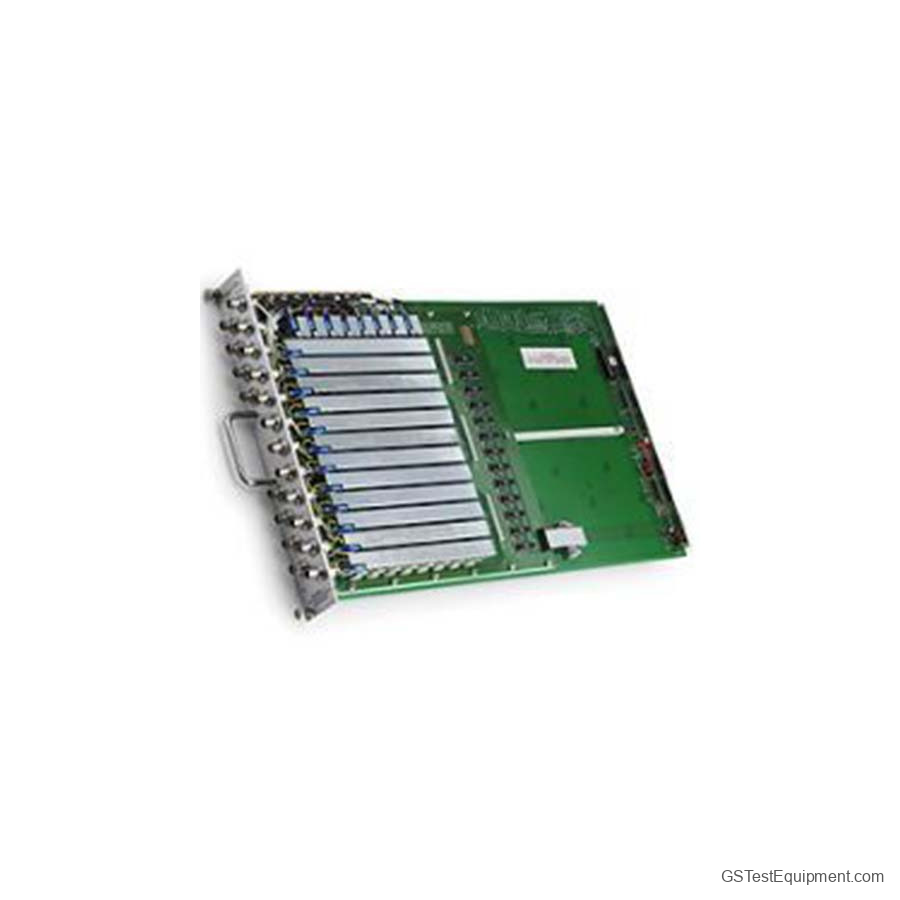

Keithley Instruments 77154 Overview
The Keithley 7154 High Voltage Scanner Card switches voltages to 1100V peak or currents to 0.5A. The current carry capacity of each relay contact is 1A. Two-pole relays switch both circuit High and Low for full floating measurements and each input line is fuse protected against current overload. A Guard input common to all channels is provided for shielding or as a Guard driven from a single instrument. Guards may be isolated by removing jumpers installed at each input. Multiple switched guard circuits can be achieved by removing the jumper and connecting circuit Guard to the Low input terminal.
