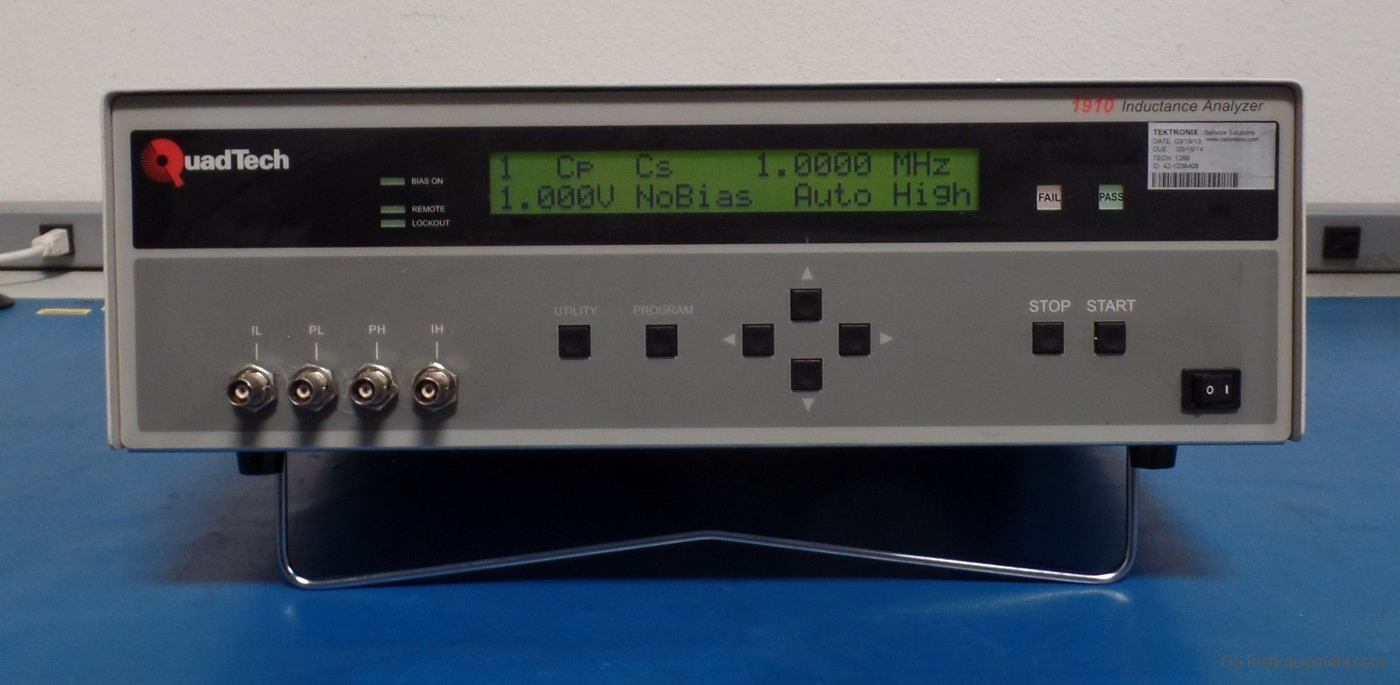

QuadTech 1910 Inductance Analyzer

Model:1910

Manufactured by: Quadtech

Category:Impedance / Gain Phase Analyzers

Quadtech 1910 Overview

  • Measures 15 Impedance Parameters, DC Resistance, Voltage and Current
  • 0.1% Basic Measurement Accuracy
  • 27,000 Programmable Frequencies from 20Hz to 1MHz
  • AC Test Voltage Programmable from 20mV to 1V
  • Internal DC Bias Current, Programmable from 0 to 1A
  • Fast Measurement Speeds up to 40/Second
  • Ls, Lp Measurement Range: 0.001nH to 99.999H
  • Automatic Open/Short Zeroing Eliminates Connection Errors
  • LCD Display for Menu Programming and Test Results
  • 14 Hi/Lo Sorting Bins for Pass/Fail Testing
  • RS-232, IEEE-488 and PLC Interfaces all Standard
  • Results Displayed as Deviation or %Deviation from a Nominal Value
  • Internal Storage and Recall of 30 Test Setups
  • Monitor Voltage and Current to the Device Under Test
  • Constant Voltage Maintained to the Device Under Test
  • Ability to Automatically Perform 6 Unique Tests in Sequence
  • Keypad Lockout Prevents Changes to the Test Setup
  • Programmable Average and Delay Times
  • Automatic Correction for Different Test Lead Lengths
