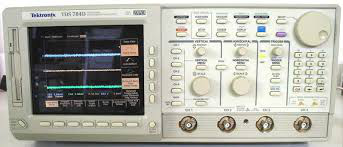

Tektronix TDS784D Overview

Features:

• 1 GHz Bandwidth
• Sample Rates to 4 GS/s
• Record Lengths to 8 M Points
• Captures and Displays up to 200,000 Waveforms per Second
• 4 Channels
• 1% Vertical Accuracy
• 8-Bit Vertical Resolution, Over 11 Bits with Averaging and Over 13 Bits with Hi-res
• 1 ns Peak Detect
• 1 mV/div to 10 V/div Sensitivity
• Channel Deskew
• Floppy Disk Storage
• Iomega Zip and Zip Plus Drive Compatible
• Advanced Triggering
• 29 Automatic Measurements and Measurement Statistics
• FFT and Advanced Math
• Histograms
• Histogram Statistics
• Limit Test
• FastFrame Time Stamp
• Communication Signal Analysis, Including Mask Testing and SONET/SDH and Fibre Channel Optical Reference Receivers
• Full GPIB Programmability


Tektronix TDS784D Options

13 - RS-232-C and Centronics Interface Ports
HD - Add a hard disk
2M - 8 M acquisition length
1F
2F - Advanced DSP math

Tektronix TDS784D All Available Options
