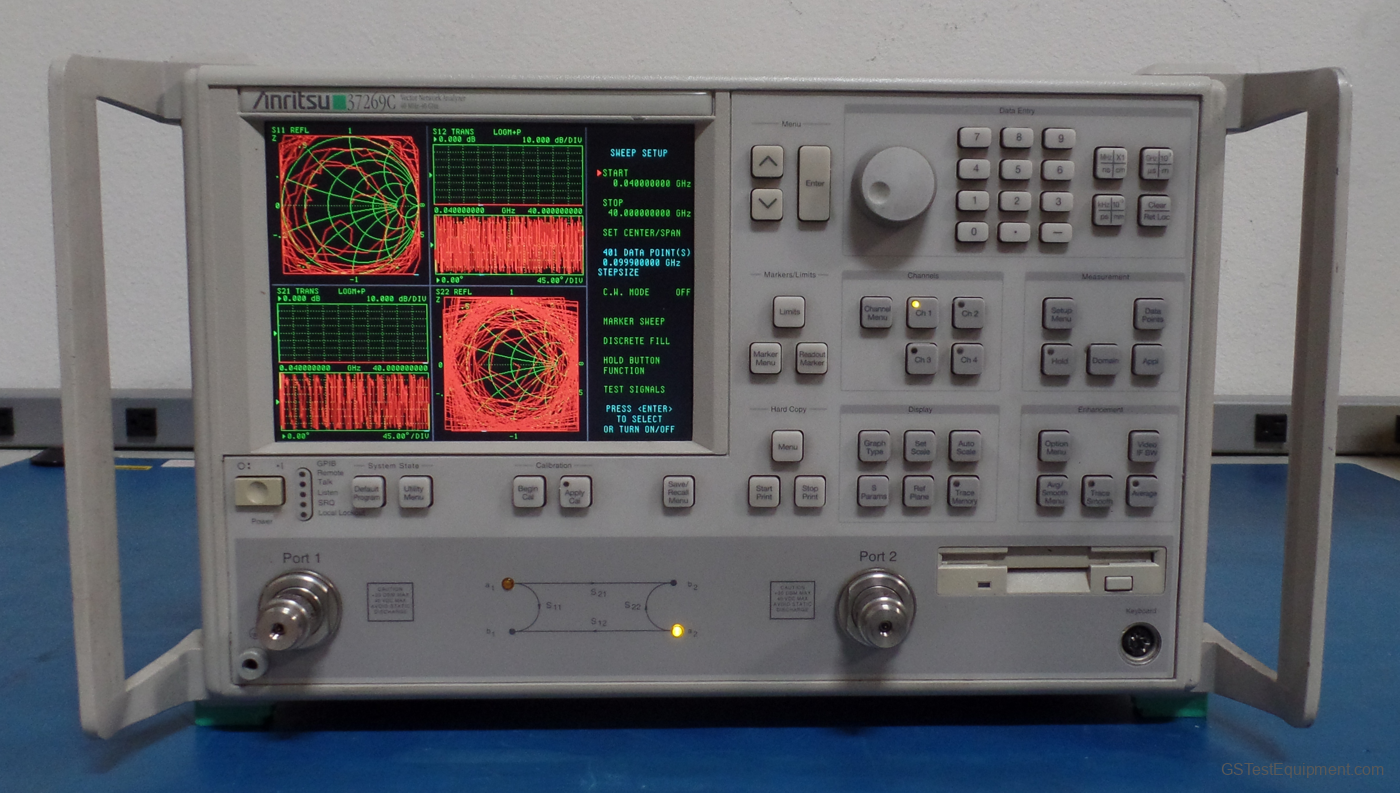

Anritsu 37269C-2-3-10-11 Overview
The Anritsu 37269C ector Network Analyzer (VNA) is a high performance tool designed to make fast and accurate S-parameter measurements of passive devices across the 40 MHz to 40 GHz range. The Anritsu 37269C Vector Network Analyzer (VNA) integrates a synthesized source, S-parameter test set and tuned receiver into a single compact package that is ideal for bench-top testing. High throughput measurements are achieved through the use of fast, 12-term error corrected sweeps, fast GPIB data transfers and an intuitive user interface. All measurement results are displayed on a large LCD color display or on an external VGA monitor. For maximum productivity, the Anritsu 37269C VNA includes as standard features · Fast Sweeping Synthesized Source · Auto Reversing Test Set · Solid-State Transfer Switch · Four Independent Displays · Four Channel Receiver · Internal Hard and Floppy Disk Drives · LRL/LRM Calibration · Adapter Removal Calibrations · Fast Measurement Throughput via GPIB
Features:
Features:
- Fast Sweeping Synthesized Source
- Auto Reversing Test Set (37200C/37300C models only)
- Solid-State Transfer Switch (37200C/37300C Models Only)
- Four Independent Display Channels
- Multiple Source Control of Two External Sources
- Four Channel Receiver
- Internal Hard and Floppy Disk Drives
- LRL/LRM Calibration
- Adapter Removal Calibrations
- Fast Measurement Throughput via GPIB
- Built-In AutoCal® Control
