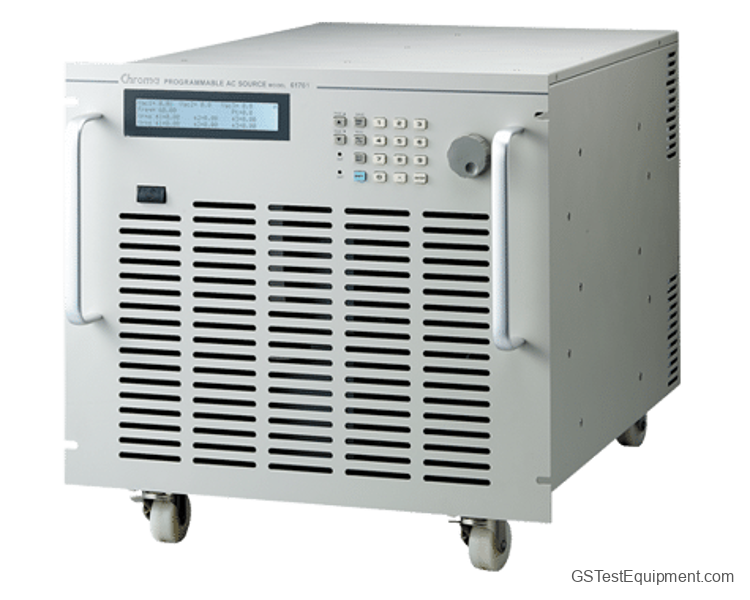

Chroma 61704 Overview
Chroma 61704 Features:
- 0-300V
- 15-1.2KHz
- 3 Phase
- 6000VA
- Built-in PFC, provides input power factor of over 0.98
- AC+DC output mode
- Comprehensive measurement capability,V, Irms, Ipk, Iinrush, P, PF, CF of current etc.
- Programmable r.m.s. current limit
- Turn on, turn off phase angle control
- Optional function for transient voltage output
- Full protection: OP, OC, OV and OT protection
- Optional GPIB and RS-232C interface
- Advanced PWM technology delivers high power density in a compact rack-mountable package
- User-definable power-on state
- Built-in output isolation relays
