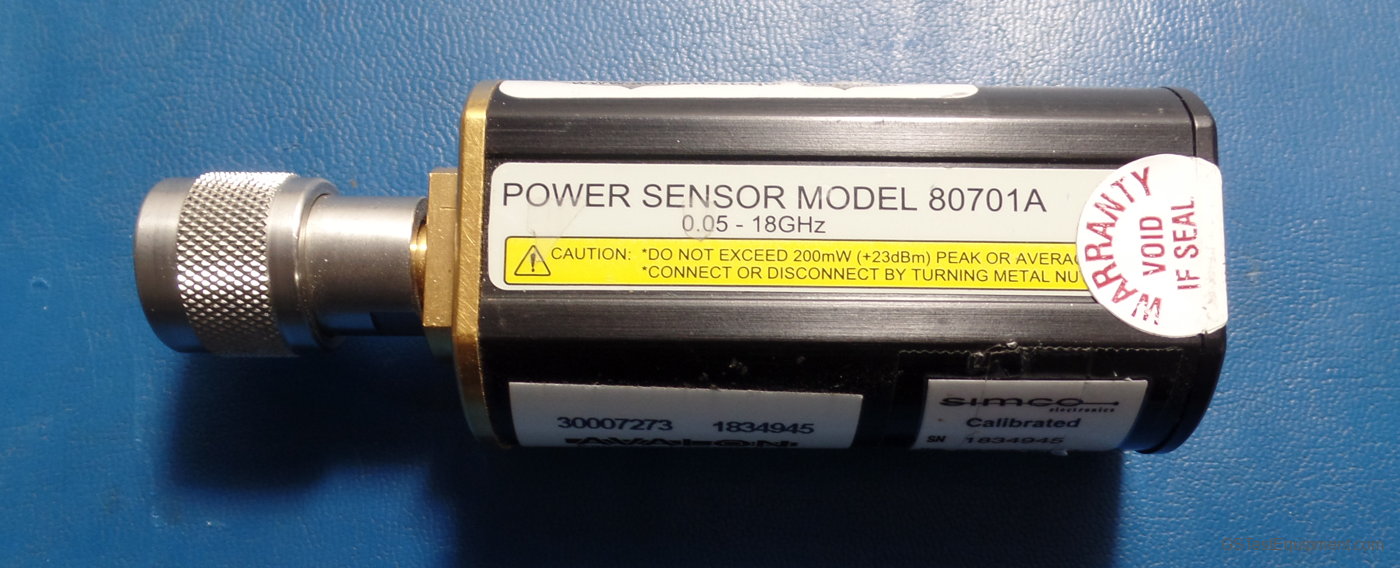

Gigatronics 80701A Overview
Freq Range/Power Range
50 MHz to 18 GHz -64 to +20 dBm, CW
250 MHz to 18GHz -60 to +20 dBm, Modulation Max Power
+ 23 dBm (200 mW) Power Linearity
Frequency > 8GHz -60 to -20 dBm:+/-0.00dB -20 to +20 dBm:+/-0.05dB/10dB
Frequency < 500MHz -60 to -20 dBm:+/-0.00dB -20 to +20 dBm:+/-0.05dB/10dB RF Connector
Type N(m) 50 ohm
