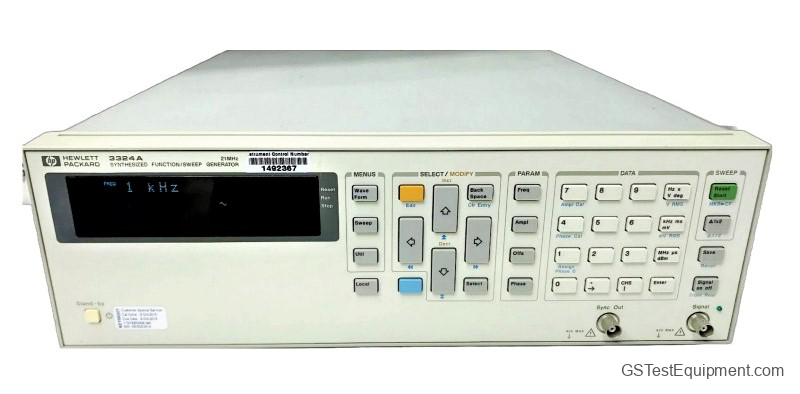

HP / Keysight / Agilent 3324A Overview
The Agilent 3324A synthesized function/sweep generator provides synthesizer performance and multi-segment sweep at a moderate price, for applications such as speed sensors. Additionally, multi-phase signals can be set up, as variable-phase and master/slave capabilities can be used together.
Features:
Features:
- 1 mHz to 11 kHz (triangle, ramps), 11 MHz (square), 21 MHz (sine)
- Multi-interval sweep
- Master/slave capability
- ±719.9° variable phase
- Additional 60 MHz (auxiliary 0 dBm) output
- Amplitude: 1 mV to 10 V in eight 1-3-10 sequence ranges (50 Ohm into 50 Ohm)
- Outputs and GPIB float up to 40 V
