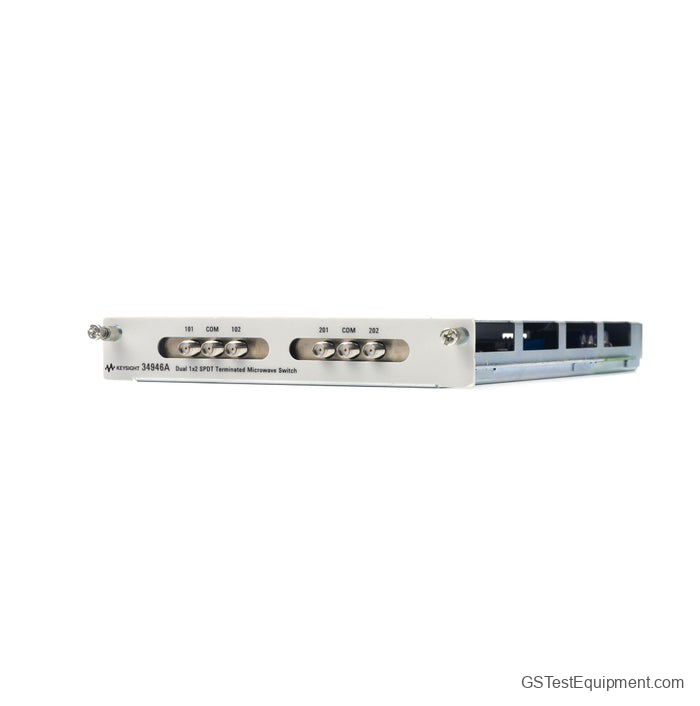

HP / Keysight / Agilent 34946A Overview
The Agilent 34946A microwave switch for the 34980A Multifunction Switch/Measure Unit offers bi-directional switching for test signals from DC to 26.5 GHz. These switches provide excellent insertion loss, isolation, and VSWR specification. The microwave switches are configured as two independent 1x2 (SPDT) terminated switches on a single module. For general-purpose microwave switching applications, the module can be used to switch separate signal sources for a multi-band receiver/transmitter testing application.
Features:
Features:
- Two SPDT terminated switches
- 4 GHz , 20 GHz or 26.6 GHz options
- High isolation, low VSWR
- Up to 50W switching
- SMA connectors
- External switch mounting option
