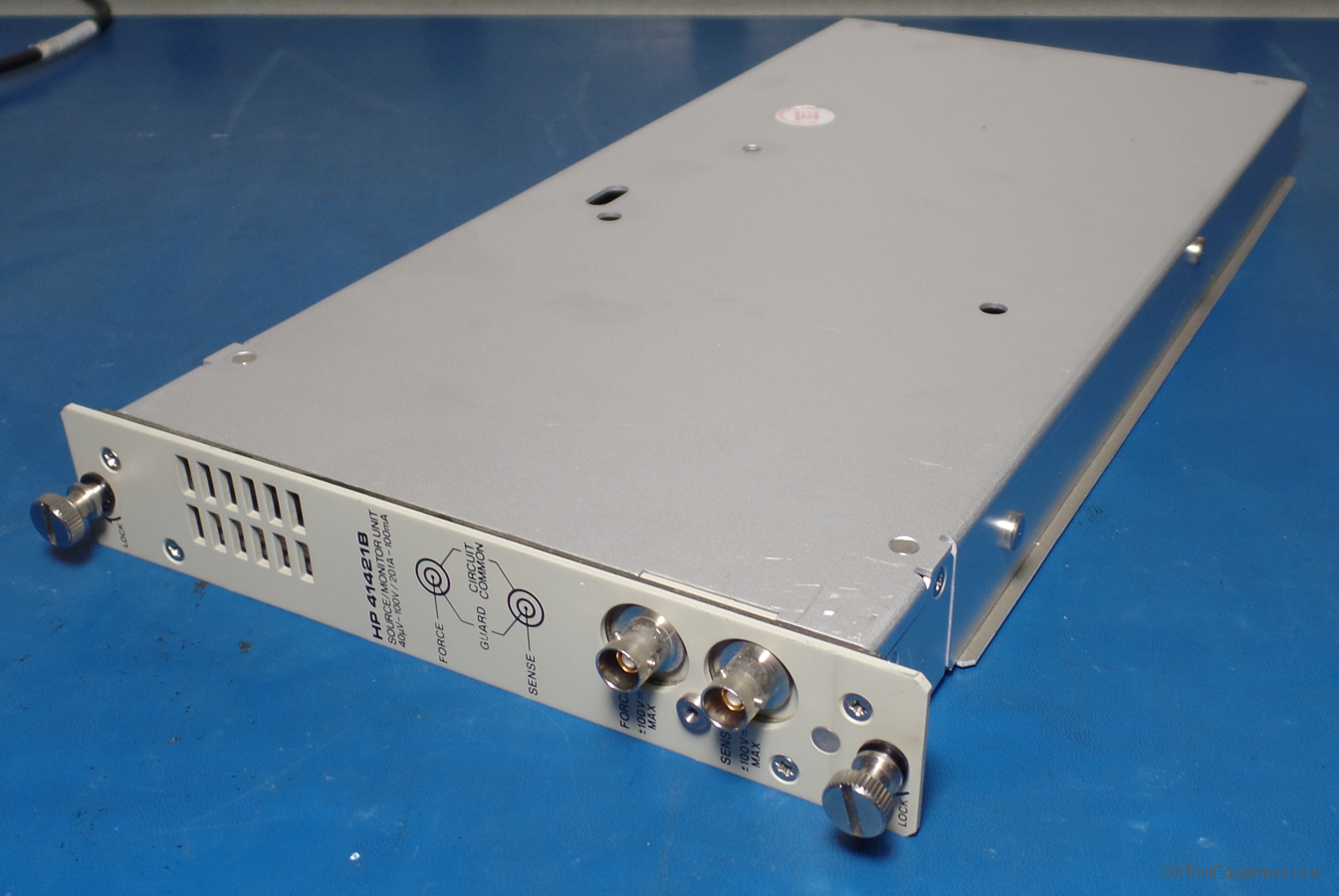

HP / Keysight / Agilent 41421B Overview
The Agilent HP 41421B is a used Source Monitor Unit Plug the for 4142B. 100 microvolt to 100V range and current up to 100 mA
Agilent 41421B Performance Characteristics:
Agilent 41421B Performance Characteristics:
- Form Factor: Module (proprietary interface/bus)
- Output 1/Range 1 Max. Current: 100 mA
- Remote Sensing Measurement: No
- Overvoltage Protection: No
- Overcurrent Protection: No
- Over-temperature Protection: No
- Local Lockout: No
- Self test: No
- Required 1 slot
- V Range: 100uV to 100V
- Min CurrentRange: 50fA
- Meas Resl: 40uV, 20fA
- Accu: 0.05%V, 0.2%I
