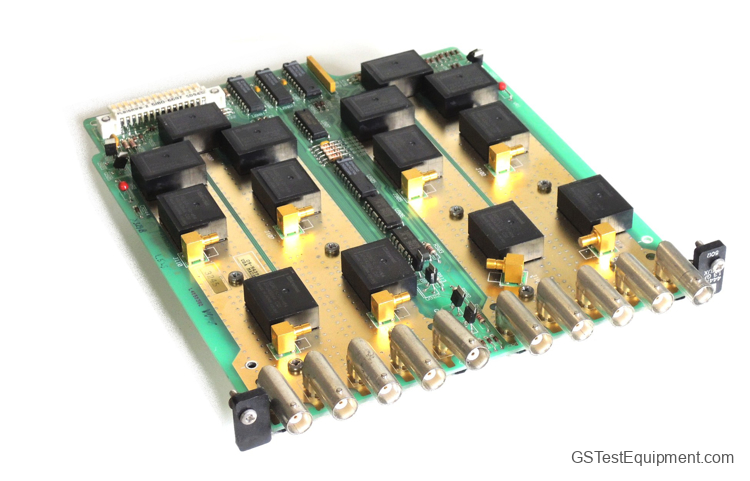

HP / Keysight / Agilent 44478A - Data Acquisition Systems

The Agilent 44478A Multiplexer Module is an ideal choice for broadband switching of high-frequency or fast pulse signals. Dual 1-to-4 multiplexers provide bi-directional switching of signals from DC to 1.3GHz. High-channel isolation (>55 dB at 1 GHz) assures quality dynamic-range measurements using spectrum, network, or distortion analyzers. Each 1-to-4 multiplexer consists of seven relays in a ''tree'' structure, which provides high isolation and low VSWR (voltage standing wave ratio). All the connectors on the module''s edge are female BNC for ease of wiring. Off-channels can be terminated in resistors to maintain proper operation of DUT circuitry. Simply plug a 50 Ohm SMB type resistive termination onto the on-board male SMB connector provided for each channel.

Standard Product Includes:

• 44478A Dual 1x4 RF Multiplexer Module
• 1 Connection Terminal
• 1 Certificate of Verification

Features:

• Switching up to 1A, 24W or 24VA
• Insertion loss less than 1.9dB at 1.3GHz
• Maximum Scan Rate: 43 Chans/sec
• Maximum Voltage: 42V, DC+AC peak
• Maximum Current: 1A
• Maximum Power:
• Per channel: 24W, 24VA or 44dBm, Characteristic Impedance: 50 Ohm
• For complete information, click on the 3499 Data Sheet link
