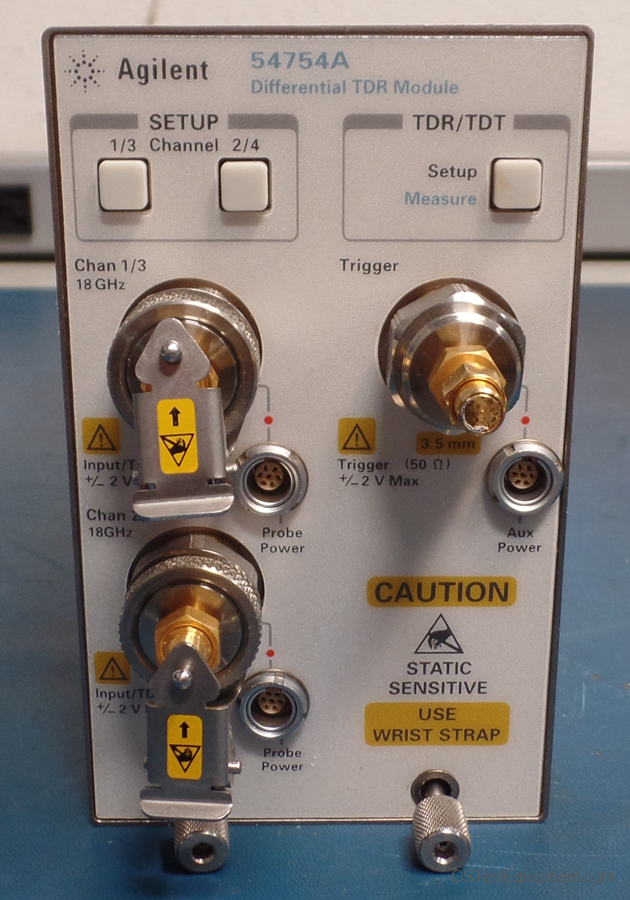

HP / Keysight / Agilent 54754A Overview
Two 18 GHz electrical channels with 3.5 mm (m) connectors
- Characteristic rms noise: 0.25 mV (12.4 GHz BW), 0.5 mV (18 GHz BW)
- Maximum input signal: ± 2 Vdc
- Two built-in step generators configurable for 1-port, 2-port common mode, or 2-port differential TDR or TDT measurements
- Built-in TDR/TDT calibration, user-selectable edge speed, S-Parameters (requires mainframe FW rev. A.06.01 or later. S-parameters requires option 202)
Compatibility
- 54750A High-Bandwidth Digitizing Oscilloscope Mainframe
- 83480A Digital Communications Analyzer Mainframe
- 86100A/B Infiniium DCA Mainframes
- 86100C Infiniium DCA-J Mainframe
- 86100D Infiniium DCA-X Mainframe
