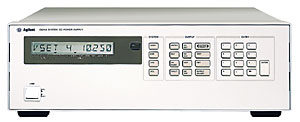

HP / Keysight / Agilent 6628A Overview
Agilent high performance DC power supplies offer spec and accuracy for test optimization. The precision multiple output, 25W - 50W GPIB 6625A, 6626A, 6628A, and 6629A provide fast, low-noise outputs; dual-range, precision low current measurement; built-in measurements and advanced programmable features; and protection features to ensure DUT safety.
The Agilent 50W, dual-output 6628A is a versatile solution to help improve system accuracy and reduce test time in a 3U high package.
The Agilent 50W, dual-output 6628A is a versatile solution to help improve system accuracy and reduce test time in a 3U high package.
Output Ratings (2 outputs)
- Low-range volts, amps 50W: 0 to 16 V, 0 to 200 mA
- High range volts, amps 50W: 0 to 50 V, 0 to 1 A or 0 to 16 V, 0 to 2 A
Programming Accuracy at 25°C ±5°C (2 outputs)
- Voltage 50W: 0.016% + 3 mV (low), 10 mV (high)
- Current 50W: 0.04% + 185 µA (low), 500 µA (high)
Ripple & Noise (20 Hz to 20 MHz) 2 outputs each
- Voltage rms: 500 µV
- Peak-to-peak: 3 mV
- Current rms: 0.1 mA
