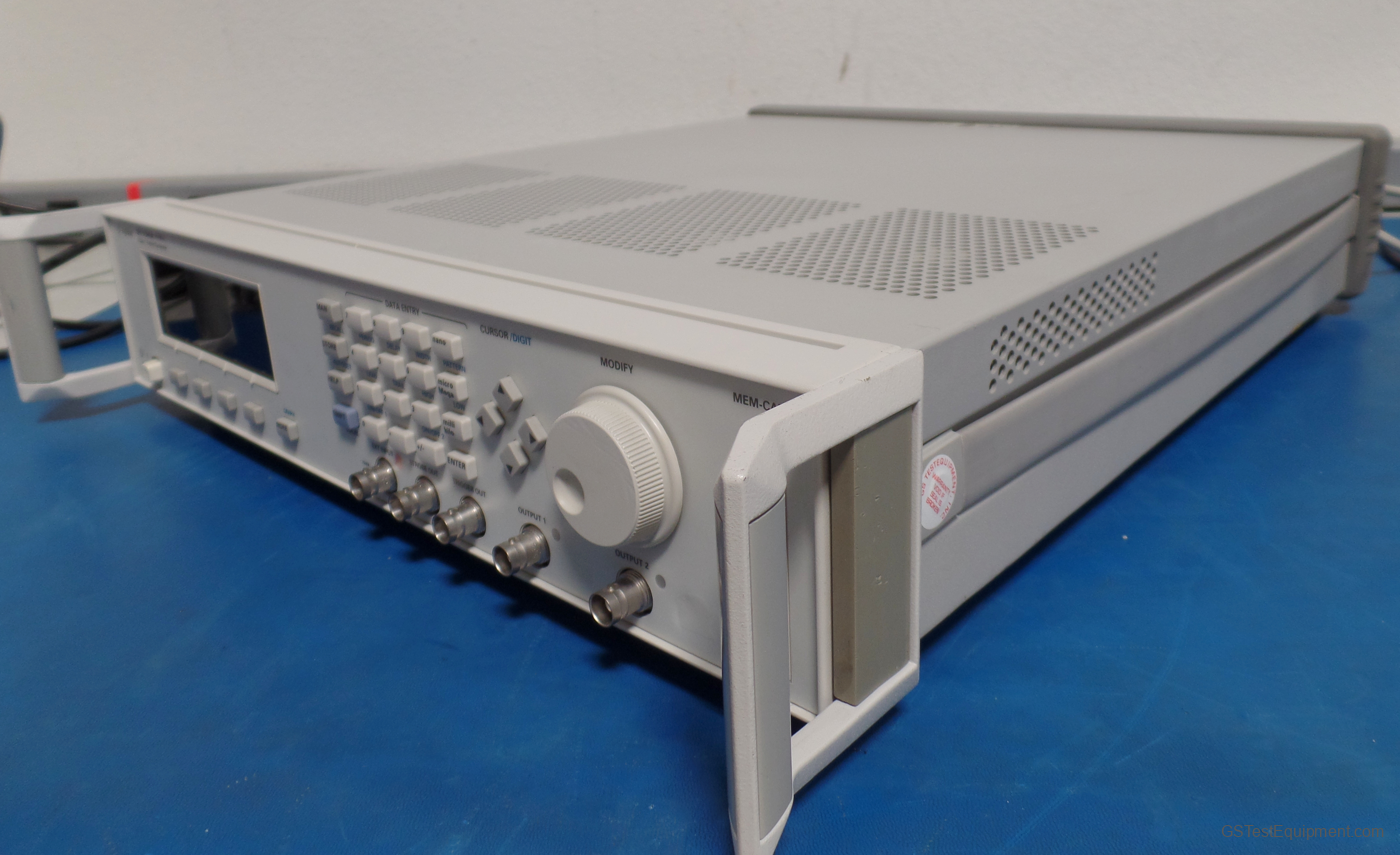

HP / Keysight / Agilent 81104A Overview
The 81104A extends the frequency range and adds RZ/NRZ pattern capability up to 16 kbit per channel. An NRZ strobe channel provides a trigger at arbitrary points in the pattern, or can be used as an additional pattern source.
If two 81105A Output modules are available, the outputs can be added. This allows elaborate pulse shapes for simulating glitches, testing clock-recovery circuits or generating 3- or 4-level codes.
Channel-add and 1000 Ohm source modes each operate up to about 60 MHz. Combined, the maximum speed is about 15 MHz.
NOTE: Each Agilent single-channel Pulse Pattern Generator 81104A 80 MHz requires one (1) output module Agilent 81105A. For the dual-channel configuration, two (2) output modules Agilent 81105A are required.
Features:
- Single-/dual-channel pulse pattern generator
- 80 MHz, 10 V from 50 Ohm into 50 Ohm
- Triggerable / PLL operation selectable
- Pulse / burst / pattern modes selectable
- Variable transition times
- BNC outputs, single-ended
- Single- or dual-channel: Requires 1 or 2 output modules 81105A
