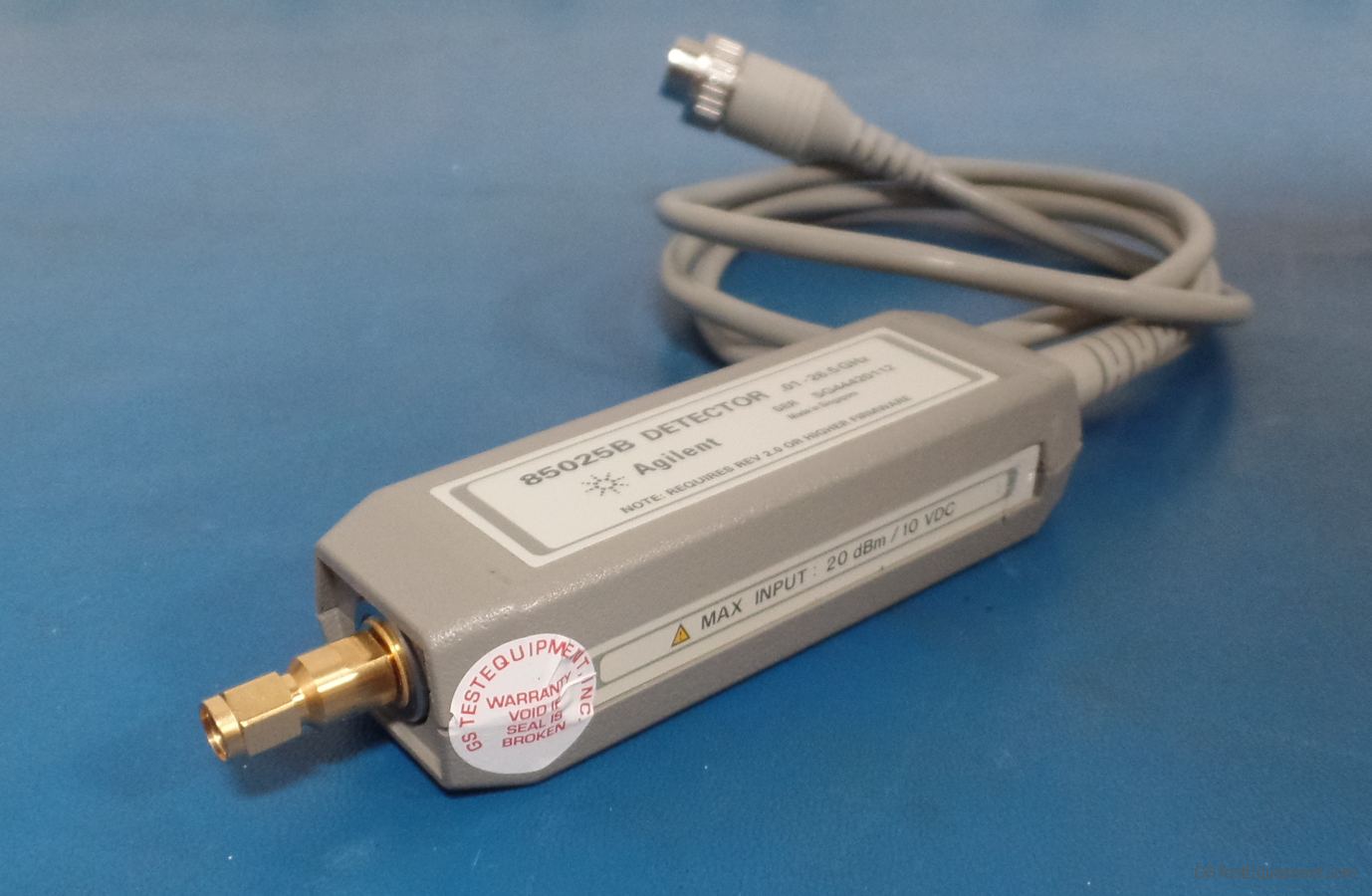

HP / Keysight / Agilent 85025B Overview
The Agilent 85025B detector is designed specifically for operation with the Agilent 8757D scalar network analyzer and is not compatible with the 8756 or the 8755. The 85025B detects either a modulated (ac) or an unmodulated (dc) microwave signal.
Features:
Features:
- Detects both ac and dc signals
| Frequency | Connector | Dynamic | Return | Frequency | Power | Dynamic | Absolute | |
| range | type | range | Frequency | loss | response2 | (50 MHz) | accuracy3 | accuracy4 |
| 10 MHz to | 3.5 mm (m) | AC mode | 0.01 to 0.04 GHz | 10 dB | ±0.8 dB | 16 dBm | ±0.8 dB | ±0.8 dB |
| 26.5 GHz | +16 to –55 dBm | 0.04 to 4 GHz | 20 dB | ±0.5 dB | 6 dBm | ±0.4 dB | ±0.4 dB | |
| DC mode | 4 to 18 GHz | 17 dB | ±0.5 dB | –35 dBm | ±0.4 dB | ±0.4 dB | ||
| +16 to –50 dBm | 18 to 26.5 GHz | 12 dB | ±2.0 dB | –50 dBm | ±1.3 dB | ±1.3 dB | ||
| –55 dBm | ±1.6 dB |
