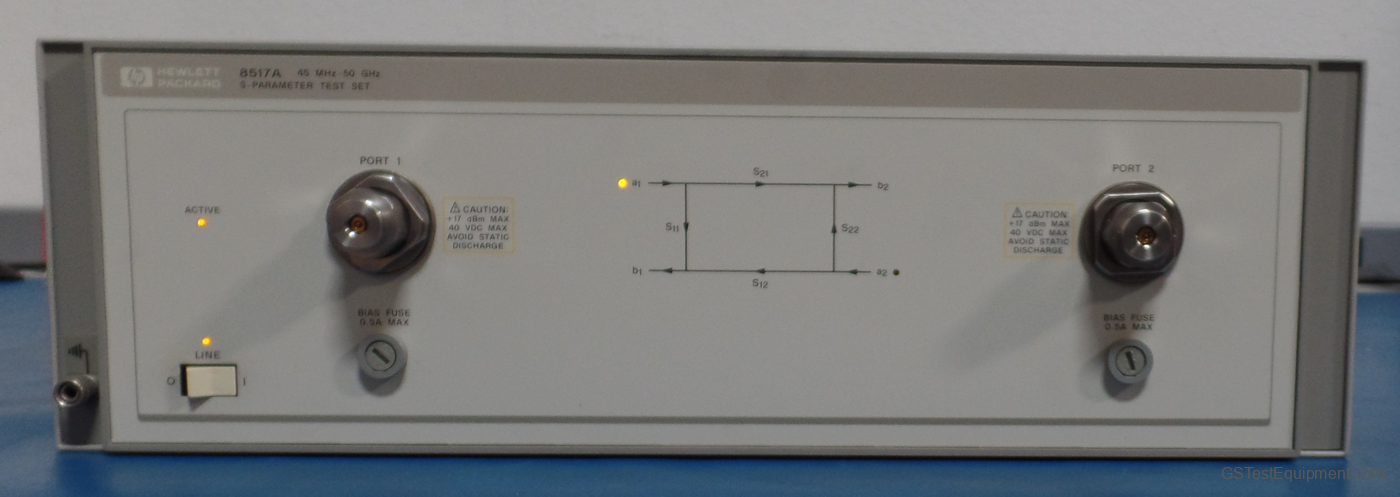

HP / Keysight / Agilent 8517A Overview
The Agilent 8517A is a 45MHz to 50GHz, S-Parameter Test Set.
Performance Characteristics
- Form Factor Module (proprietary interface/bus)
- Type S-Parameter Test Set
- Impedance 50 Ohm
- Minimum Frequency 45 MHz
- Maximum Frequency 50 GHz
- Connector Type to DUT 2.4mm(f)
Measurements/Features
- Power Level: +3 to -13 dBm
- DC Bias: 500mA, 40Vdc max.
- Attenuation: 0 to 60dB
Programmability/Connectivity
- User Interface Proprietary
Life Cycle Data
- Out of Production Sep-01-1994
- Out of Support Sep-01-2004
Compliance
- CE Compliance Not on file
- UL Compliance Not compliant
Power Requirements
- Input Power Universal (Auto Sense and Switch)
