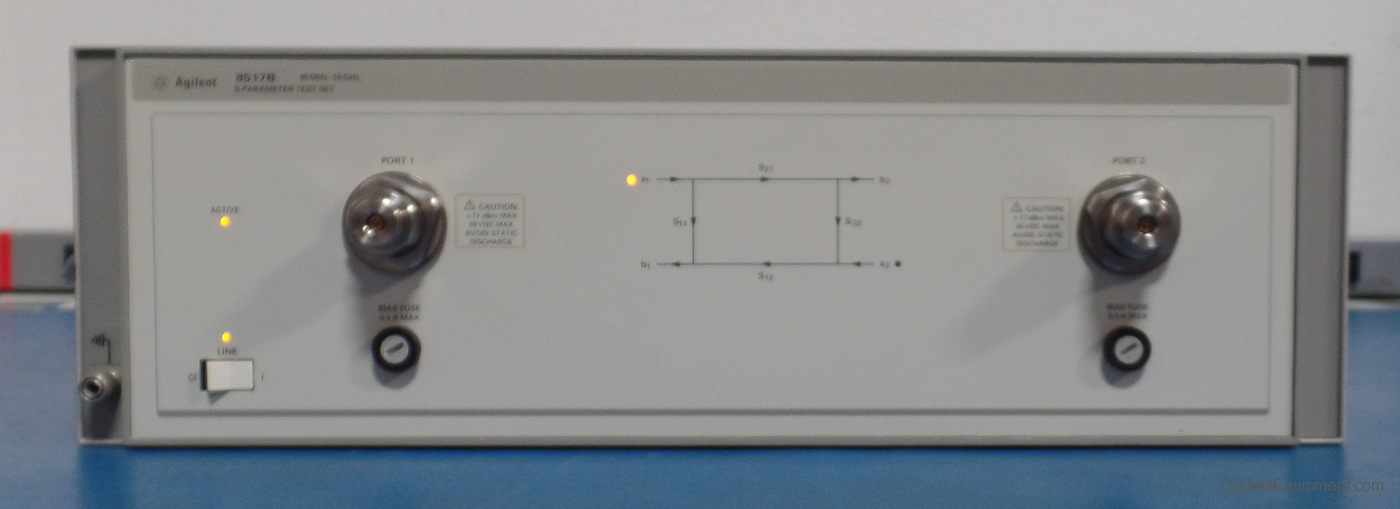

HP / Keysight / Agilent 8517B Overview
The Agilent 8517B test set has an architecture that develops a separate reference channel for each incident port. RF switching is done with a built-in electronic switch. For active device measurements, the test sets include the ability to apply dc bias (external) to the test port center conductors. Also available are two 60 dB step attenuators, which allow control of the port 1 and port 2 signal levels. Option 007 high dynamic range configuration. Migrate from the 8510 and 8530 to the PNA Series Network Analyzer
Features:
Features:
- 45 MHz to 50 GHz
- Separate reference channel for each incident port
- Built-in electronic switch
