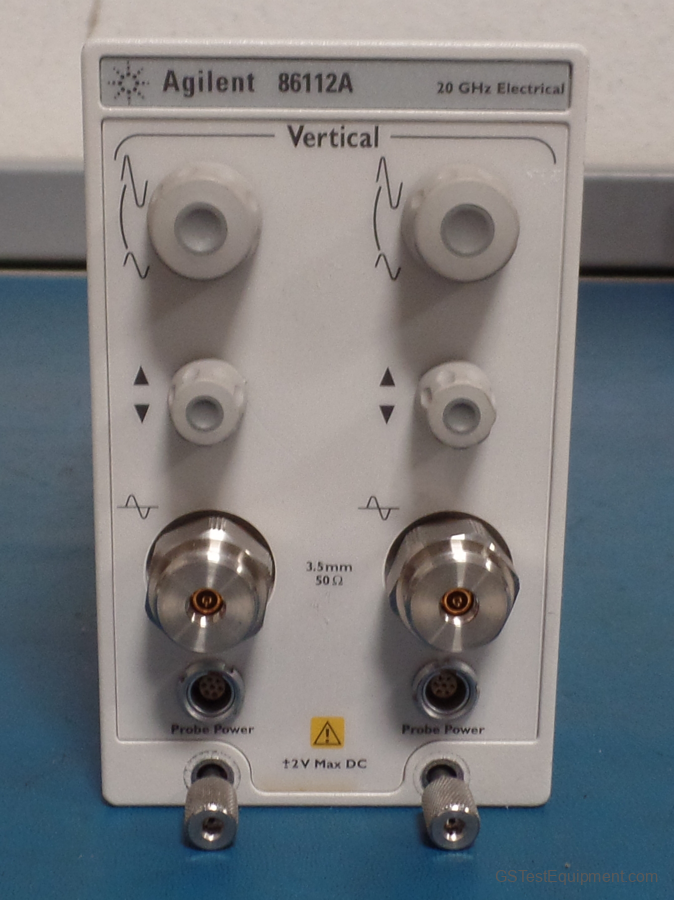

HP / Keysight / Agilent 86112A Overview
The Agilent 86112A provides two accurate measurement channels with user-selectable bandwidths of 12.4 or 20 GHz. The lower bandwidth mode provides excellent oscilloscope noise performance for accurate measurement of small signals. The high bandwidth mode provides high-fidelity display and measurement of very high-speed waveforms.
Two 20 GHz electrical channels with 3.5 mm (m) connectors
- Characteristic rms noise: 0.25 mV (12.4 GHz BW), 0.5 mV (20 GHz BW)
- Maximum input signal: ± 2 Vdc
- Electrical Inputs: 3.5 mm male, ships with factory-installed 3.5 mm (f-f) connector savers (5061-5311 or similar adapter)
Compatibility
- 86100A/B/C Infiniium DCA/DCA-J Mainframes
- 86100D Infiniium DCA-X Mainframe
