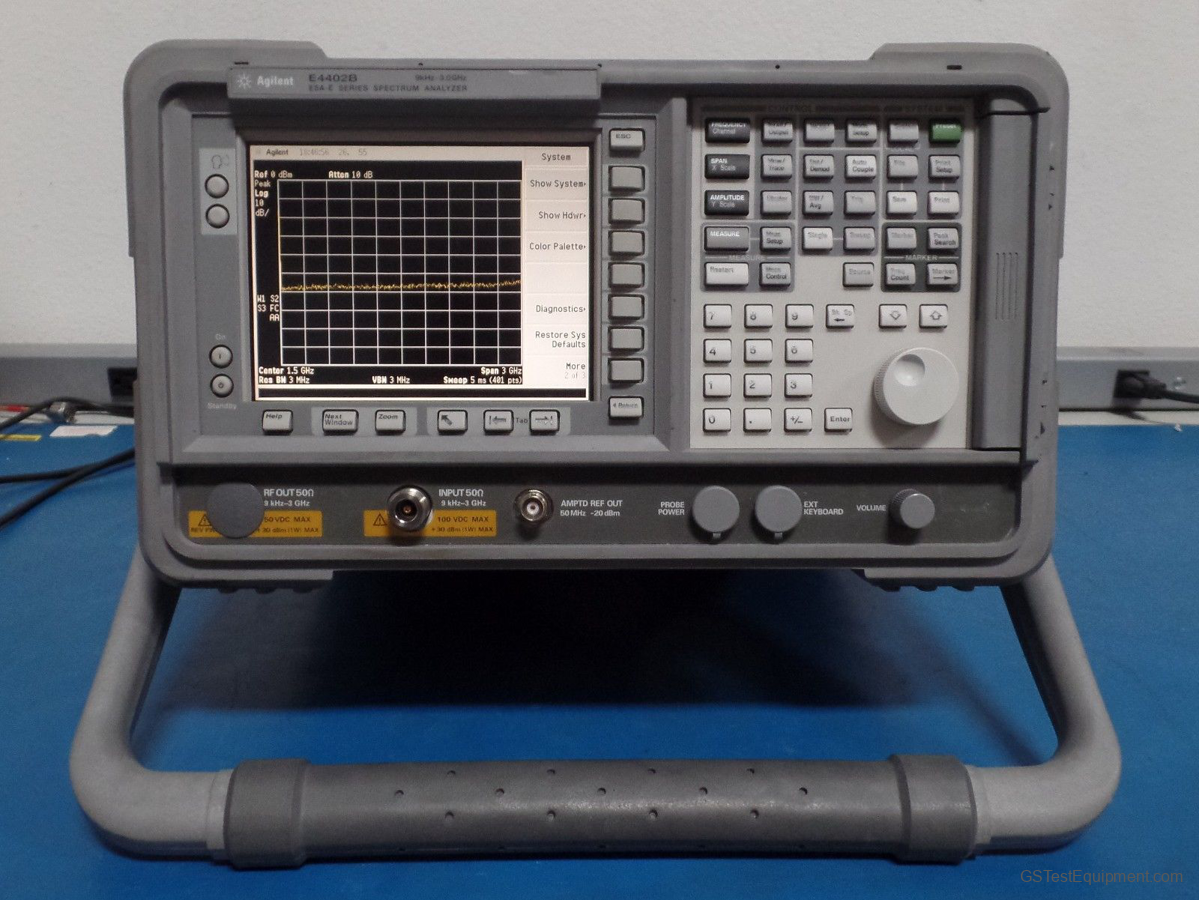

HP / Keysight / Agilent E4404B - Spectrum Analyzers

Customers looking for a general purpose spectrum analyzer will appreciate the flexibility of the ESA spectrum analyzer that can be used for a wide range of applications from aerospace and defense to the manufacturing line. Browse the ESA Brochure.

Customers who wish to take advantage of the ESA flexibility but who need a faster analyzer for the manufacturing line, or connectivity to LAN/USB in addition to GPIB, or want to do in depth signal analysis with 89600B VSA software will benefit from the new EXA signal analyzer. The EXA signal analyzer now comes standard with many of the ESAs optional features and yet offers more applications than the ESA.

Speed

• 0.4 dB overall amplitude accuracy
• +16 dBm TOI
• -167 dBm DANL, with internal preamp
• 1 Hz narrow resolution bandwidth (optional)

Measurement Applications

• Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and more view full list of measurement applications
• Agilent''s PowerSuite one-button power measurements included as standard

Features

• 10 MHz analysis bandwidth
• Segmented sweep for up to 32 discontinuous spans in one sweep
• Rugged and portable for lab grade performance in the field
• 5 minute warm-up to guaranteed measurement accuracy

Configuration Selections

• Standard express analyzer E4404B-STD for faster delivery time, includes options AYX, BAA.
• Standard express analyzer with tracking generator E4404B-STG for faster delivery time, includes options 1DN, AYX, BAA.
• Communications test express analyzer E4404B-COM for faster delivery time, includes options 1D5, 1DR, B7D, B7E, BAA.
• Custom configuration for maximum flexibility with standard delivery time.
