HP / Keysight / Agilent E4416A - RF Power Measurement

Name: HP / Keysight / Agilent E4416A
Brand: HP / Keysight / Agilent
SKU: E4416A
Availability: InStock

Agilent E4416A EPM-P series power meter single ch

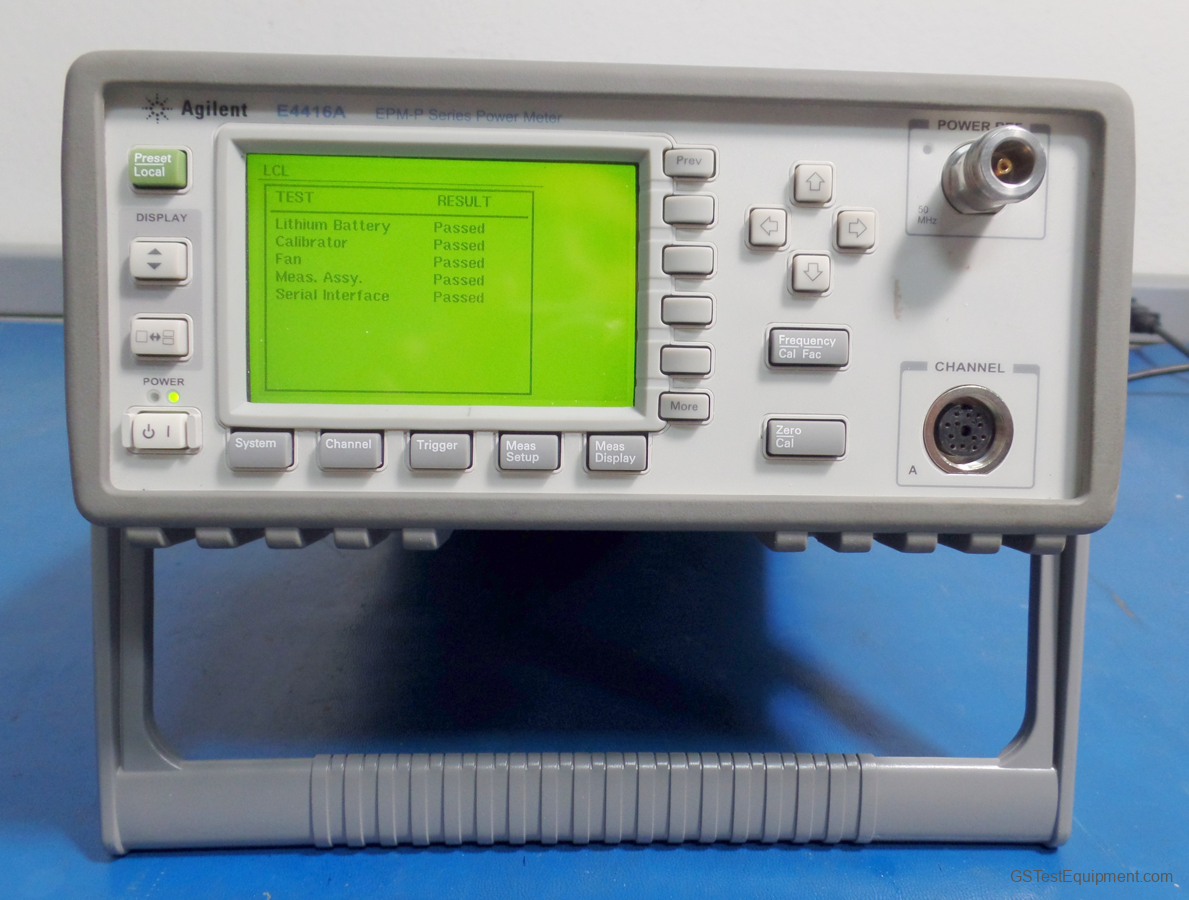

HP / Keysight / Agilent E4416A RF Power Measurement - front view

Get a Quote

Sell Your E4416A

We buy used RF Power Measurement equipment!

Trade-in quote →

Rent E4416A

Short-term rental options available

Rental quote →

Product Details

Model:: E4416A
Manufacturer:: HP / Keysight / Agilent
Category:: RF Power Measurement
Availability:: Available - Request Quote

Can't find the exact model? Request a quote and we'll respond quickly.

HP / Keysight / Agilent E4416A Overview

The E4416A single channel EPM-P series power meter, for peak, average, peak-to-average ratio and time-gated measurements, using the E9320 peak and average power sensors.

20 Msample/s per second sampling rate for reliable continuous and single shot measurements on wide bandwidth signals
Time-gated and free run power measurements
Free ''Analyzer Software'' software for complete pulse and statistical analysis, software is located ''In the Library''
8 pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth™, IS-95 CDMA, W-CDMA and cdma2000)

1xEV-DO wireless systems — simplify development, verification, and manufacturing with the EPM-P power meters and E9320 E-Series power sensors Measurement Tip

Features:

20 Msample/s per second sampling rate for reliable continuous and single shot measurements on wide bandwidth signals
Time-gated and free run power measurements
Free ´Analyzer Software´ software for complete pulse and statistical analysis, software is located ´In the Library´
8 pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth™, IS-95 CDMA, W-CDMA and cdma2000)

HP / Keysight / Agilent E4416A Complete Specifications

001	Front panel input sensor and reference calibration connector
002	Parallel rear panel sensor input connector and front panel reference calibrator connector
003	Parallel rear panel sensor input connector and rear panel reference calibrator connector
004	Delete power sensor cable
005	Include power sensor cable, E9288A length 5-ft (1.5m)
0B0	Do not include manuals
0BK	English language manual set (hardcopy Users Guide and Programming Guide)
1A7	Certificate of compliance calibration - ISO 17025 with test data, printed
34131A	Transit case for half-rack 2U high instruments (e.g., 34401A)
34141A	Yellow soft carry/operating case
34161A	Accessory pouch for 34401A, 33120/250A, 34970A, 53131A, etc.
908	One-instrument rackmount kit
909	Front Handle & Rack Flange Kit
A6J	Certificate of compliance calibration - ANSI Z540 with test data, printed
AB1	Korea Quick Users Guide (Korean localization)
AB2	China Quick Users Guide (Chinese localization)
ABA	U.S. Quick Users Guide (English localization)
ABD	Germany Quick Users Guide (German localization)
ABE	Spain Quick Users Guide (Spanish localization)
ABF	France Quick Users Guide (French localization)
ABJ	Japan Quick Users Guide (Japanese localization)
ABZ	Italy Quick Users Guide (Italian localization)
E20	Bundled With Transit Case And E9322A Sensor
E9288A	Sensor Cable 1.5m/5ft (E9288A)
E9288B	Sensor Cable 3m/10ft (E9288B)
E9288C	Sensor Cable 10m/31ft (E9288C)
J16	Special Line Cord
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-016-3	ISO 17025 Compliant Calibration - 3 years
R-50C-016-5	ISO 17025 Compliant Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C	Return to Agilent Warranty - 3 years
R-51B-001-5C	Return to Agilent Warranty - 5 years
R-51B-001-C	Return to Agilent Warranty - 1 year
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6	Commercial calibration with test results data
