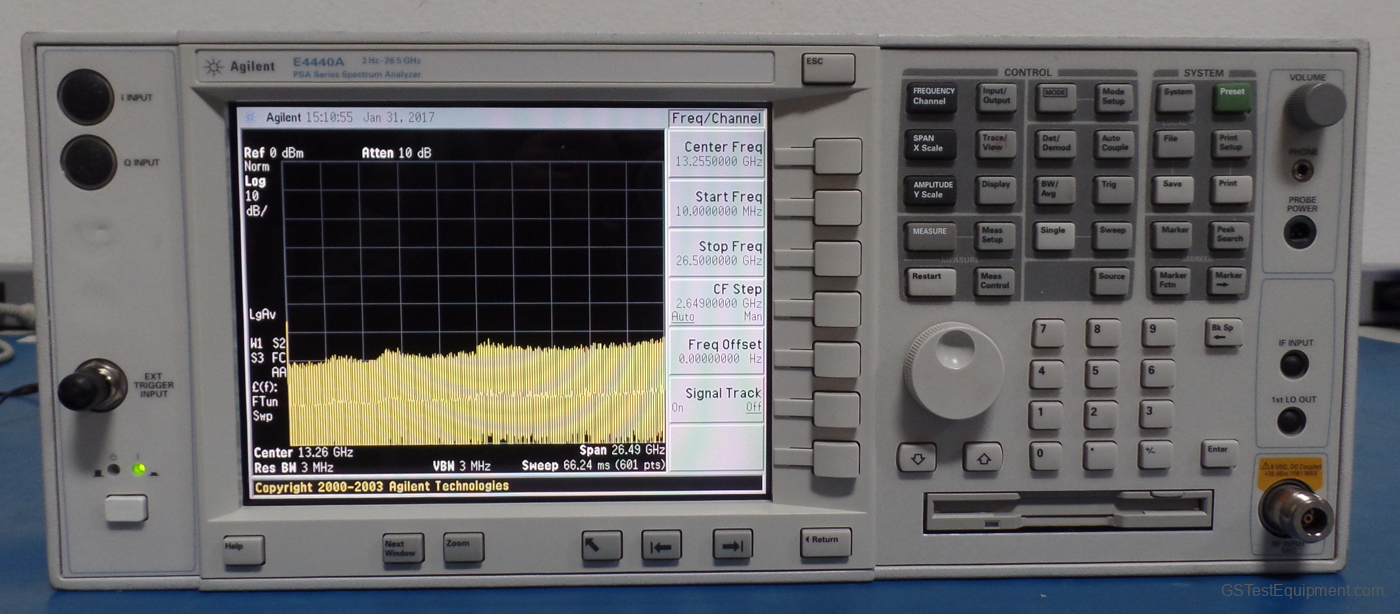

HP / Keysight / Agilent E4440A-1DS-226 Overview
Key Features & Specifications
Performance
- +/-0.19 dB absolute amplitude accuracy
- -155 dBm (-169 dBm w/preamp) displayed average noise level (DANL)
- -118 dBc/Hz phase noise at 10 kHz offset
- 81 dB W-CDMA ACLR dynamic range
Analysis bandwidth
- 10 MHz analysis bandwidth (Option B7J for the Basic mode)
- Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals.
- -78 dB (nominal) third order intermodulation for 40 or 80 MHz analysis bandwidth
- Up to 300 MHz analysis bandwidth for calibrated VSA measurements
