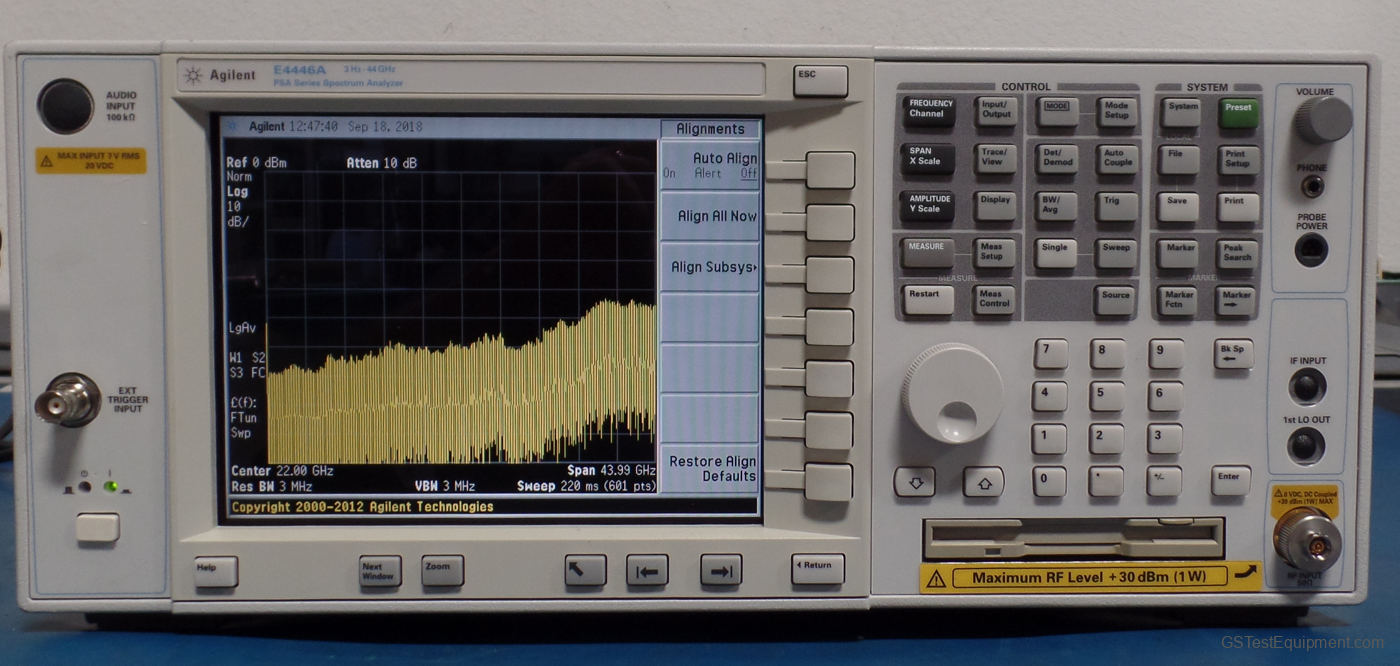

HP / Keysight / Agilent E4446A-110-111-115-226-266-B7J - Spectrum Analyzers

The Agilent E4446A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 44 GHz. With optional external mixing, the frequency coverage extends to 110 GHz with the Agilent external mixer, and to 325 GHz with other vendors'' mixers. Agilent external mixer offerings.

Configured with the following options:

• 110 RF/uW internal preamplifier
• 111 USB device side I/O interface
• 115 512 MB user memory
• 226 Phase noise measurement personality
• 266 Programming code compatibility suite measurement personality
• B7J Digital demodulation hardware

Performance

• +/-0.19 dB absolute amplitude accuracy
• -154 dBm displayed average noise level (DANL)
• -118 dBc/Hz phase noise at 10 kHz offset
• 81 dB W-CDMA ACLR dynamic range

Analysis Bandwidth

• 10 MHz analysis bandwidth (Option B7J for the Basic mode)
• Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals. View the demo
• -78 dB (nominal) third order intermodulation for 40 or 80 MHs analysis bandwidth
• Up to 300 MHz analysis bandwidth for calibrated VSA measurements

Flexibility

• Flexible platform with 16 optional, easy-to-use built-in measurement personalities and hardware options
• Agilent''s PowerSuite one-button power measurements included as standardRF/uW internal preamplifierRF/uW internal preamplifierProgramming code compatibility suite measurement personalityDigital demodulation hardwareDigital demodulation hardware
