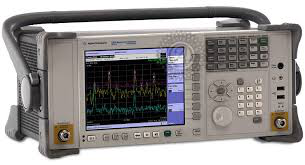

HP / Keysight / Agilent N1996A-506 Overview
Frequency Coverage
- Frequency range : 100 kHz to 3 or 6 GHz
- Stimulus/response suite: 10 MHz to 3 GHz or 6 GHz
- Preamplifier to 3 GHz or 6 GHz
Performance
- -156 dBm/Hz displayed average noise level ( DANL)
- +18 dBm third order intercept (TOI)
- 0.5 dB overall amplitude accuracy
Compact Design
- 7.5 kg
- 2+ hours of battery life
Features
- Channel power measurements
- Optional AM/FM modulation analysis
- 10% adjustable RBW steps from 10 Hz to 200 kHz, 250 kHz, 300 kHz, 1 MHz, 3 MHz, and 5 MHz, VBW, 1 Hz to 8 MHz
- For a full description, read the technical overview
