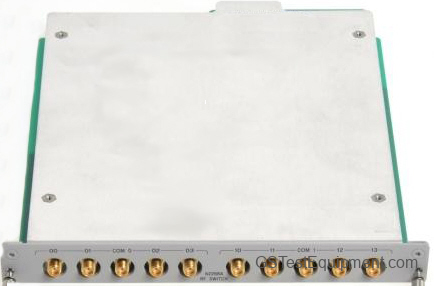

HP / Keysight / Agilent N2268A Overview
The N2268A multiplexer module has two 1x4 independent multiplexers with SMA connectors, delivering high performance, very low insertion loss, high isolation, and excellent VSWR performance. This high-density RF multiplexer module is an economical RF signal switching solution. Its 3.0 GHz bandwidth guarantees signals will not be degraded when switched from source to destination. Each group of four channels is isolated from the other and from the chassis to prevent ground loops.
Features:
Features:
- Ideal for wireless communication test
- Insertion loss <1.7 dB at 3.0 GHz
- 30V, 0.5A
- <0.35dB insertion loss
- <1.20 VSWR
- 50 ohm impedance, SMA connector
