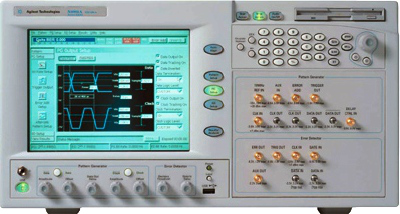

HP / Keysight / Agilent N4901A Overview
Features:
- Frequency Range: 150Mb/s - 13.5 Gb/s
- True differential data generation and analysis
- Superior pulse performance
- Jitter modulation capability: 200ps, DC to 1 GHz
- Low intrinsic Jitter: < 1ps RMS TYP.
- Transition Time (10%-90%)s: < 25ps
- Integrated CDR: operates in data rate ranges form 1.0- 1.6 Gb/s 2.11 - 3.20 Gb/s, 4.23 - 6.40 Gb/s and 9.9 - 10.9 Gb/s
- Input Sensitivity: <50mV pp
- Intuitive Windows XP user interface: easy-to-use, easy-to-learn
- Measuring Suite, which offers comprehensive measurement and analysis features
- Expandable software platform, which allows adding new software pieces in the future addressing upcoming trends and applications.
