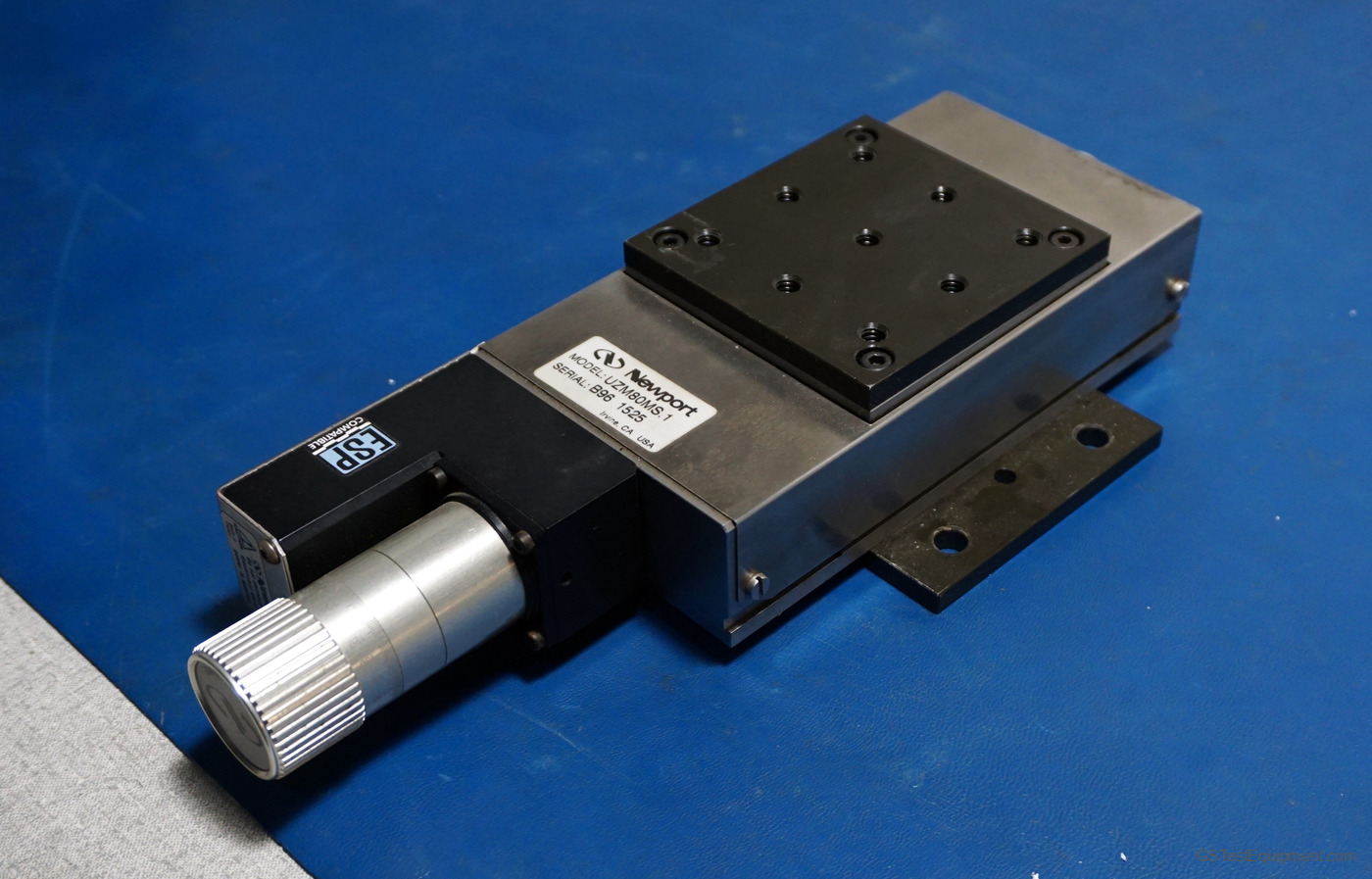

Newport UZM80MS.1 Overview
Vertical Linear Stage -- UZM80MS.1
SPECIFICATIONS
Axis ConfigurationConfigurationZ OnlyOrientationHorizontalX Axis Travel (inch)Y Axis Travel (inch)Z Axis Travel (inch)0.1575Bearing, Guide, & Drive SpecificationsBearing / Guide MechanismLinear BushingDrive MechanismLead / Acme ScrewDrive TypeHandwheelLead ScrewLead Screw (inches per turns)0.0315English Screw LeadsMetric Screw Leads0.8 mmPositioning Accuracy (inch/inch)0.0040Repeatability (inch)7.87E-6Base DimensionsLength (inch)6.22Width (inch)3.19Height (inch)1.26Carriage DimensionsLength (inch)3.15Width (inch)3.15PerformanceLoad Capacity (lbs)6.74Maximum Speed (in/sec)0.0039Output FeedbackHome; Travel Limit SwitchesFeaturesStackableNotesExceptional high load capacity based on opposing wedges motion concept
