Newport UZM80MS.1

Newport: UZM80MS.1

Description: Vertical Stage ESP Compatible

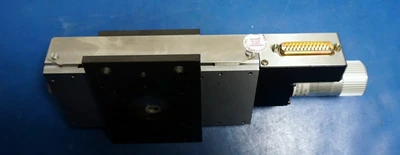

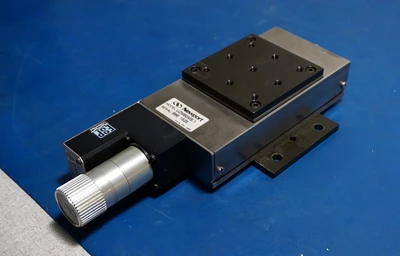

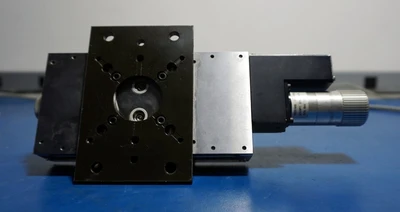

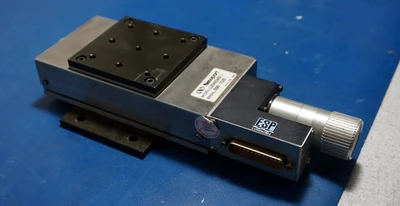

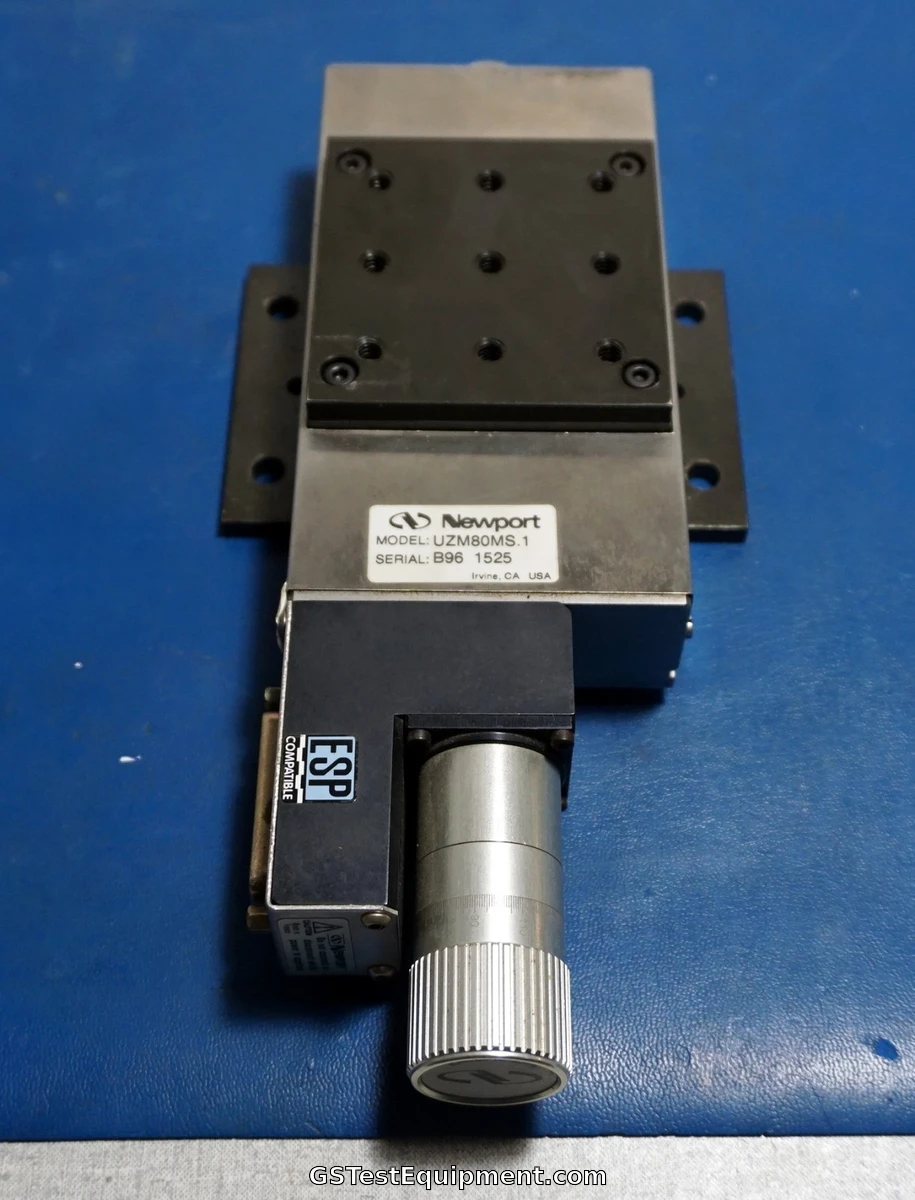

The Newport UZM80MS.1 Vertical Linear Stage is a high-load bearing, High-Resolution vertical motion stage with 4mm of movement. Utilizing an opposing wedge design, this stainless steel stage can be used to support a load of up to 30 pounds. With the vernier actuator, you can directly read motions of 0.1 micron, or by using the built-in incremental shaft encoder, you can use the included Newport CV1000 digital readout to read with .0001 inch or .001mm resolution. The top stage holes are drilled and tapped with a metric M4 thread.

Vertical Linear Stage -- UZM80MS.1

SPECIFICATIONS

Axis ConfigurationConfigurationZ OnlyOrientationHorizontalX Axis Travel (inch)Y Axis Travel (inch)Z Axis Travel (inch)0.1575Bearing, Guide, & Drive SpecificationsBearing / Guide MechanismLinear BushingDrive MechanismLead / Acme ScrewDrive TypeHandwheelLead ScrewLead Screw (inches per turns)0.0315English Screw LeadsMetric Screw Leads0.8 mmPositioning Accuracy (inch/inch)0.0040Repeatability (inch)7.87E-6Base DimensionsLength (inch)6.22Width (inch)3.19Height (inch)1.26Carriage DimensionsLength (inch)3.15Width (inch)3.15PerformanceLoad Capacity (lbs)6.74Maximum Speed (in/sec)0.0039Output FeedbackHome; Travel Limit SwitchesFeaturesStackableNotesExceptional high load capacity based on opposing wedges motion concept
