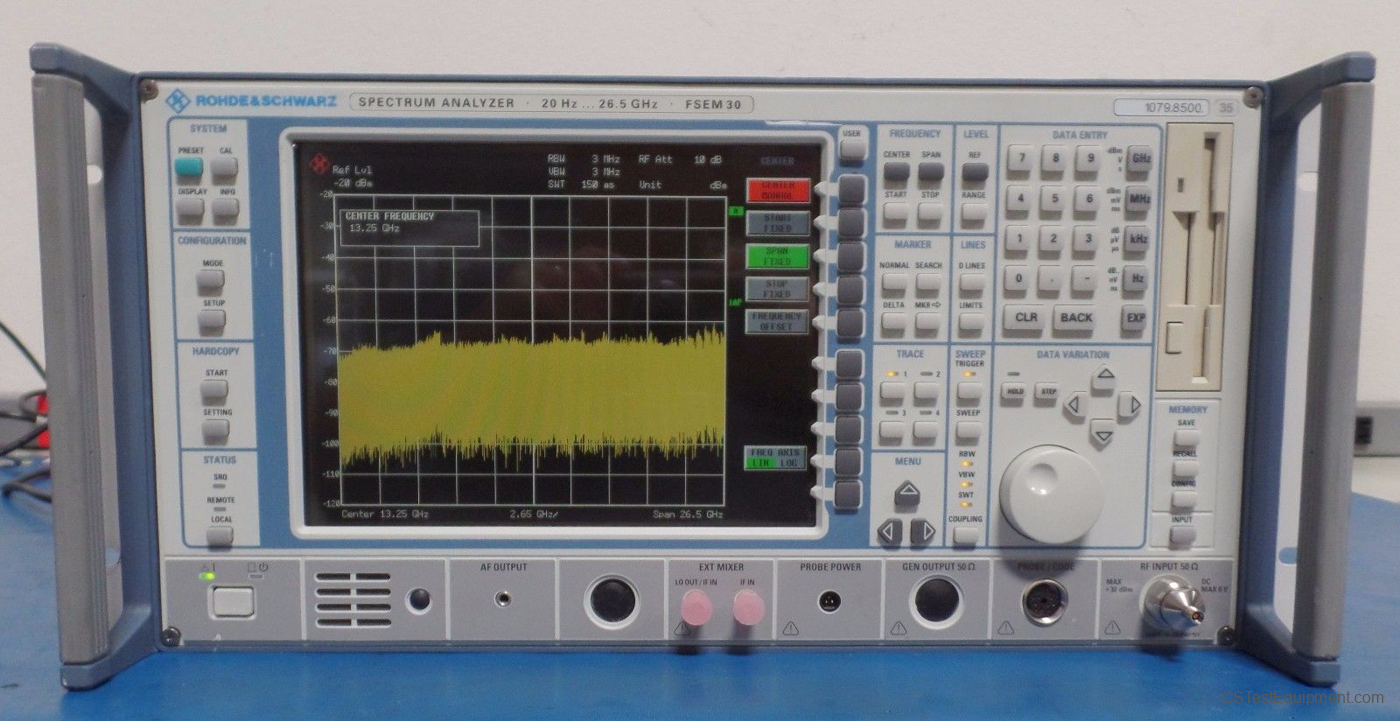

Rohde and Schwarz FSEM30 Overview
The Rohde FSEM30 is a 20Hz to 26.5GHz Spectrum Anaylyzer.
-
Measurements/Features
- 24-cm LCD 9.5" display
- Measure uncertainty - 1GHz: 1dB
- Int RF trig for GATED SWEEP me
- More than 20 sweeps/s
- 8 Markers
- Frequency counter w/ sel resolution
- Numerous level & Frequency lines
- Split-screen display
- Quasi-analog display Performance Characteristics
- Form Factor Mainframe
- Type Analyzer
- Input Impedance 50 Ohm
- Minimum Frequency 20 Hz
- Maximum Frequency 26.5 GHz
- Frequency Accuracy 0.00000000002 %
- Zero Span Yes
- Minimum Span 0 Hz
- Maximum Span 26.5 GHz
- Minimum Sweep Time 1 us
- Maximum Sweep Time 2500 s
- Minimum Resolution Bandwidth 1 Hz
- Maximum Resolution Bandwidth 10 MHz
- Resolution Bandwidth Steps 1/2/3/5
- Minimum Video Bandwidth 1 Hz
- Maximum Video Bandwidth 10 MHz
- Video Bandwidth Steps 1/2/3/5
- Minimum Single-Side-Band Noise -129 dBc/Hz
- Maximum Single-Side-Band Noise -81 dBc/Hz
- Maximum DC Input 0 V
- Minimum Displayed Average Noise -138 dBm
- Maximum Displayed Average Noise -74 dBm
- Maximum Dynamic Range 160 dB
- Trigger Source External,Internal
- Trigger Modes Freerun,TTL
- Demodulation AM,FM
- Connector type (main signal) Type-N(f)
- 2nd IF Input Connector Type BNC(f)
- Probe Power Yes
- Noise Source Driver No Programmability/Connectivity
- User Interface Proprietary
- Ports to Peripheral Devices GPIB,RS232
- Data Storage Type FDD,HDD Compliance CE Compliance Not on file
- UL Compliance Compliant Power Requirements
- Input Power Universal (Auto Sense and Switch) Standard Accessories
- Adapter 3.5mm /Adapter 3.5mm-Female and N Male /Qty:1
- Operating Manua /Operating Manual /Qty:1
