Rohde and Schwarz FSU26 - Spectrum Analyzers

Name: Rohde and Schwarz FSU26
Brand: Rohde and Schwarz
SKU: FSU26
Availability: InStock

RF Spectrum Analyzer, 20 Hz to 26.5 GHz

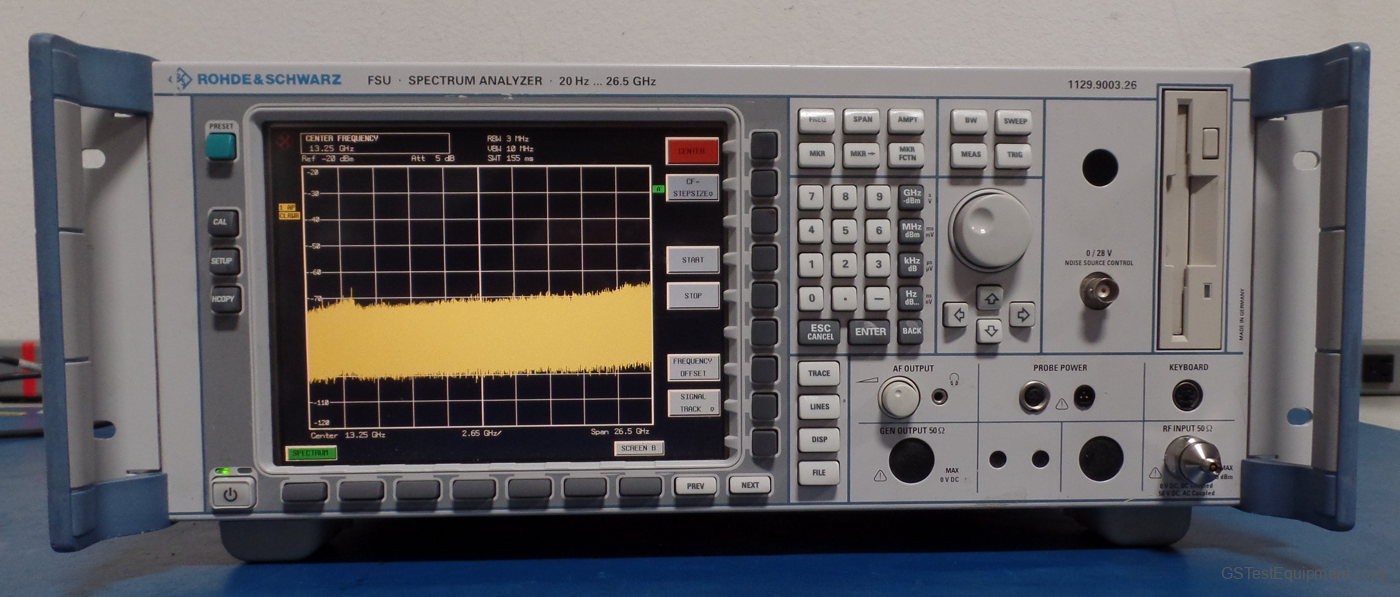

Rohde and Schwarz FSU26 Spectrum Analyzers - front view

Get a Quote

Sell Your FSU26

We buy used Spectrum Analyzers equipment!

Trade-in quote →

Rent FSU26

Short-term rental options available

Rental quote →

Product Details

Model:: FSU26
Manufacturer:: Rohde and Schwarz
Category:: Spectrum Analyzers
Availability:: Available - Request Quote

Can't find the exact model? Request a quote and we'll respond quickly.

Rohde and Schwarz FSU26 Overview

The R&S FSU spectrum analyzers are performance leaders in dynamic range, phase noise, level accuracy and resolution bandwidth- all factors that are essential for the user's ability to design, characterize, and manufacture next generation wireless elements. Features

Frequency Range- 20 Hz to 26.5 GHz
DANL- -158dBm (1 Hz RBW)
Phase Noise (Typ.)- -133 dBc @ 10 KHz offset (1 Hz RBW)
TOI (Typ.) +25 dBm
Resolution Bandwidth- 1 Hz to 50 MHz
DANL with Preamplifier option B24: typ. -168 dBm (1Hz RBW) @ 20 GHz
Fast ACP in time domain
Up to 70 measurments per second(including trace transfer via GPIB)
Measurement routines for TOI, MC ACP(R), OBW, CCDF, APD, etc. as standard.
Application firmware available for GSM/EDGE, Bluetooth, WCDMA/ HSPDA/ TD-SCDMA, CDMA-2000/ 1xEV-DV/ 1xEV-D0, etc.

Rohde and Schwarz FSU26 Complete Specifications

1R	Rack mount Adapter ZZA-94
B04	OCXO 10MHZ FOR FSU AGING/YEAR
B10	External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of
B12	Output attenuator for tracking generator for FSU, FSQ
B16	LAN interface
B18	Removable Hard Disk (not retrofittable)
B19	B18,vaSecond Hard Disk for FSU-B18 (for FSU-riant 1303.0400.02)
B20	Extended environment specification. Random vibr. 1.9G RMS, 0-55°C (not retrofittable)
B21	LO/ZF connections for external mixers (for FSQ26, FSQ40,FSU26, FSU43, FSU46, FSU50)
B23	Preamplifier 20 dB to FSU26, 3.6 - 26.5 GHz not retrofittable
B24	Preamplifier 30dB, 100 kHz to 50GHz (for FSMR26/43/50, FSQ26/40, FSU26/43/46/50;
B25	Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6 GHz for FSU, FSQ
B27	FM output, 10 MHz bandwidth
B28	Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
B4	OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
B5	Output for low phase noise 640MHz reference signal for FSU3, FSU8, FSQ3 und FSQ8
B73	Vector signal analysis for FSU demodulation bandwidth 8 MHz (FSU), broadband demodulation hardware included
B87	Extended linearity specification for specific channel filters
B88	RF hardware option 1 FSU26
B9	Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz
C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).
C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).
DCV-2	Documentation of calibration values
DCV-ZP	Printout of DCV (additional, in combination with DCV-Option only)
DKD	FSU26 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device)
FS-B33	USB mass memory write protection, disables writing to USB memory sticks (ex factory only)
FS-K10	GSM/EDGE/EDGE Evolution Measurement Appl (for FSG/FSQ/FSU)
FS-K110	Analysis of TETRA II / TEDS signals (for FSQ, FSU with option FSU-B73)
FS-K15	VOR/ILS measurements for FSMR
FS-K30	Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU
FS-K40	Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU
FS-K5	Application firmware GSM/EDGE tests for FSP, FSU, FSQ
FS-K5U	Upgrade of FS-K5 to FS-K10, GSM/EDGE/EDGE Evolution Measurement Appl (for FSG, FSQ, FSU)
FS-K7	FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU)
FS-K72	Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ
FS-K73	Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ
FS-K73+	3GPP HSPA+ UE transmitter test, application firmware (for FSMR, FSP, FSQ, FSU, FSUP,
FS-K74	3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ
FS-K74+	3GPP HSPA plus, base station test. Application firmware (for FSP, FSQ, FSU, FSG;
FS-K76	3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU
FS-K77	3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU
FS-K8	Application firmware for Bluetooth measurement on FSP, FSU and FSQ
FS-K82	CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ
FS-K83	CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU
FS-K84	1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ
FS-K85	1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU
FS-K9	Measurements with NRP power sensors NRPZ11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4
FSP-B10	External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of
FSP-B28	Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
K3	Noise Figure Measurement Software
K30	Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU
K4	PHASE NOISE MEASURMNT SW
K40	Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU
K5	Application firmware GSM/EDGE tests for FSP, FSU, FSQ
K7	FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU)
K70	Vector Signal Analyzer, Reqs Opt B73
K72	Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ
K73	Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ
K74	3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ
K76	3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU
K77	3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU
K8	Application firmware for Bluetooth measurement on FSP, FSU and FSQ
K82	CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ
K83	CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU
K84	1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ
K85	1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU
K9	Measurements with NRP power sensors NRP-Z11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4
R3	Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
U2
ZZA-411	19" adapter, 4 HU, 1/1 for BW2000 cabinets
