Rohde and Schwarz SFE100 - Broadcast Testers

Name: Rohde and Schwarz SFE100
Brand: Rohde and Schwarz
SKU: SFE100
Availability: InStock

Test Transmitter DVT K10 K22 p/n 2112.4100.12 Model 12

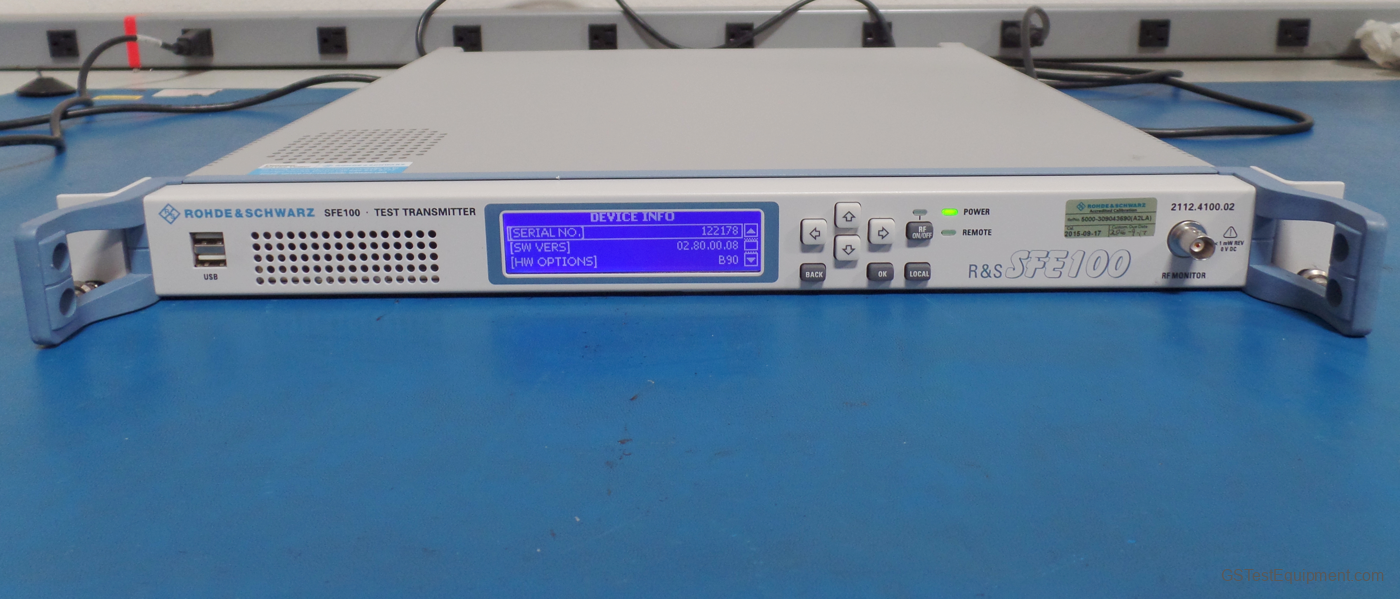

Rohde and Schwarz SFE100 Broadcast Testers - front view

Get a Quote

Sell Your SFE100

We buy used Broadcast Testers equipment!

Trade-in quote →

Rent SFE100

Short-term rental options available

Rental quote →

Product Details

Model:: SFE100
Manufacturer:: Rohde and Schwarz
Category:: Broadcast Testers
Availability:: Available - Request Quote

Can't find the exact model? Request a quote and we'll respond quickly.

Rohde and Schwarz SFE100 Overview

The R&S® SFE100 is a single-standard test transmitter with realtime coding for broadcast signals. R&S® SFE100 models are available for all common TV standards and a number of sound broadcasting standards.

The R&S® SFE100 is a compact and reliable instrument that can be equipped with a power amplifier unique in this class, making it particularly valuable in production test systems. Plus, it can be used as a simple and economical signal generator as well as for special applications as a second RF channel for the R&S® SFU.

Every R&S® SFE100 model can be equipped with the appropriate digital or analog baseband signal source with which test signals from Rohde & Schwarz libraries or customer-specific test signals can be replayed. The R&S® SFE100 thus combines two functions in one box, thereby significantly simplifying complex production test systems.

The R&S® SFE100 model with an arbitrary waveform generator enables you to generate modulation signals of any type and to replay customer-specific waveform files, irrespective of the available realtime coder models.

Occupying only one height unit, the R&S® SFE100 is extremely compact. Nevertheless, all functions can be selected locally on the instrument. Alternatively, the R&S® SFE100 can be remote-operated from a PC. In this case, operation is performed using the same convenient graphical user interface as for the R&S® SFE and R&S® SFU.

Single-standard signal generator with realtime coding
Models for all common digital and analog broadcasting standards
Wide frequency range with very good signal quality
Integrated power amplifier for high output levels
Integrated transport stream player or audio/video generator
Model with arbitrary waveform generator
Convenient control elements and remote operation

Rohde and Schwarz SFE100 Features & Options

K10 MediaFLO™ Coder
K22 TRP Player

Rohde and Schwarz SFE100 Complete Specifications

0-B15	Extension board only for SFE100 model.02 S/N > 121000 only for SFE100 model.03 S/N > 131000
0-B3	Memory extension RAM-module for SFE100 (upgrade in service dept. only)
0-B6	Compact Flash Memory 4GB for SFE100-K20 / SFE100-K22 (upgrade in service dept. only)
0-B90	high power amplifier for VHF and UHF band, factory installation only,
0-C5	Five years of Factory Standard depot calibration coverage based on the R&S recommended calibration interval - includes test data.
0-C5	Five years calibration coverage based on the R&S recommended calibration interval - includes test data.
0-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
0-K1	Coder DVB-T/H, 2K/4K/8K-COFDM bandwidth 5, 6, 7 and 8 MHz ser.no. required
0-K10	Coder MediaFlo mobile video broadcast ser.no. required
0-K11	Coder T-DMB/DAB/DAB+ mobile video/audio broadcast ser.no. required
0-K12	Coder DTMB/DMB-TH (GB20600-2006) Multi-carrier and single-carrier mode ser.no. required
0-K15	Coder CMMB COFDM, 1k/4k-Mode, Bandwidth 2MHz, 8MHz ser.no. required
0-K16	Coder DVB-T2 Single-PLP mode for SFE100 models .02 and .03
0-K16	Coder for DVB-T2 Beta Release SFE-100-B15 required
0-K18	Coder ATSC-M/H according to ATSC M/H and ATSC/8VSB specification
0-K2	Coder DVB-C/ISDB-C 16 - 256 QAM, 0.1 - 8 MS/s ser.no. required
0-K2	Coder DVB-C/ISDB-C 16 - 256 QAM, 0.1 - 8 MS/s ser.no. required
0-K20	TS Generator incl. SDTV test signals ser.no. required
0-K22	TRP Player TRP, T10, BIN, ETI, MFS/PMS playout Ser.No. required
0-K23	Analog TV video generator includes ATV Video Basic PAL/NTSC/SECAM COLORBARS_75,PAL FUBK
0-K3	Coder DVB-S/DVB-DSNG QPSK/8PSK/16QAM ser.no. required
0-K35	ARB Waveform Generator 512 S/s - 128 MS/s, 16 Bit SFE100-B3 and ser.no. required
0-K4	Coder ATSC/8VSB according to ATSC doc. A/53 (8VSB) ser.no. required
0-K40	Noise generator AWGN, digital narrowOption band (channel bandwidth) ser.no. required
0-K5	Coder ITU-T/J.83B 64, 256, 1024 QAM ser.no. required
0-K5	Coder ITU-T/J.83B 64, 256, 1024 QAM ser.no. required
0-K6	Coder ISDB-T/TB/Tsb 2k/4k/8k-COFDM, Bandwidth 6 MHz ser.no. required
0-K8	Coder DVB-S2 QPSK/8PSK/16APSK/32APSK, 1 - 45 MS/s ser.no. required
0-K80	Digital I/Q Input Interface Extension I/Q ser.no. required
0-K9	Coder DirecTV legacy modulation QPSK, 20 MS/s ser.no. required
0-K9	Coder DirecTV Legacy Modulation QPSK, 20 MS/ ser.no. required
0-R3	Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair -
0-R3	Three years of depot repair coverage, including Factory Standard re-calibration if necessary to complete the repair. th
0-R5	Five years of depot repair coverage, including Factory Standard re-calibration if necessary to complete the repair.
0-R5	Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair -
0-U1	RF output rear pannel
0-U1	Exchange kit for SFE100 RF out rear, only for SFE100 w/o B90, ser.no. required
0K170	Coder AM/FM RDS RDS settable ser.no. required
0K190	Coder ATV standard B/G realtime coder for analog TV, PAL ser.no. required
0K191	Coder ATV standard D/K realtime coder for analog TV, PAL/SECAM ser.no. required
0K192	Coder ATV standard I realtime coder for analog TV, PAL ser.no. required
0K193	Coder ATV standard M/N realtime coder for analog TV, NTSC/PAL ser.no. required
0K194	Coder ATV Standard L realtime coder for analog TV, secam ser.no. required
0K195	Analog TV multistandard realtime coder Standards B/G, D/K, I, M/N, L ser.no. required
0K350	WinIQSim simulation software Simulation of customer defined signals ser.no. required
0PK20	TS-Generator/Player incl. SDTV test signale option package SFE100-K20, K22, B6
ATV-VIDEO	Analog TV test patterns additional test signals PAL/NTSC/SECAM ser.no. required
C5	Five years of Factory Standard depot calibration coverage based on the R&S recommended calibration interval - includes test data.
DCV	Documentation of SFE calibration values
DCV-ZP	Printout of DCV (additional, in combination with DCV-Option only)
DV-DVBH	DVB-H stream library Ser.no.of basic unit required
DV-H264	H.264 Stream Library SD, HD; MPEG-1 LII, AC-3 Serial number of basic unit required
DV-HDTV	HDTV sequences DVB and ATSC, Sr.nr. required DVG: parallel cable required
DV-ISDBT	ISDB-T transport stream library Ser.no.of basic unit required
DV-TCM	Test Card M sequences DVB and ATSC; Sr.nr. required DVG: parallel cable required
K16	Coder DVB-T2 Beta Release
R3	Three years of depot repair coverage, including Factory Standard re-calibration if necessary to complete the repair. th
R5	Five years of depot repair coverage, including Factory Standard re-calibration if necessary to complete the repair.
SFF-C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
SFF-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-C-C-C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-C-C-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-C-R-R3	Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-C-R-R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-I-C-C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-I-C-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-I-R-R3	Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-I-R-R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-J-C-C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-J-C-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-J-R-R3	Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-J-R-R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-N-C-C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-N-C-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-N-R-R3	Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-N-R-R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-S-C-C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-S-C-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-S-R-R3	Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-S-R-R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-T-C-C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-T-C-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-T-R-R3	Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-T-R-R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-V-C-C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-V-C-C5	Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
SFL-V-R-R3	Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFL-V-R-R5	Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
SFU-K221	T-DMB/DAB streams stress functions ser.no. required
SFU-K222	MediaFLO streams sgnals stress functions ser.no. required
SFU-K223	DAB+ Streams audio signals, stress functions ser.no. required
SFU-K224	ISDB-T Transport Streams brazilian ISDB-TB signals (H.264) ser.no. required
SFU-K225	CMMB Transport Streams signals, stress functions ser.no. required
SFU-K226	ATSC and ATSC Mobile DTV Streams video/audio signals, stress functions ser.no. required
SFU-K227	DVB-T2 MI streams for multi PLP Library with various streams and PC offline multiplexer software
SFU-K228	MPEG-2 transport streams for EMC tests Pattern Moving Colorbar with sinewave to various resolutions
SFU-K351	T-DMB/DAB waveform for SFE/SFE100 ARB-Ge IQ stream with video/audio content ser.no. required
SFU-K352	DVB-H waveform for ARB generator IQ stream with video/audio content ser.no. required
SFU-K353	DRM waveform for ARB-generator IQ-stream with audio content ser.no., required
SFU-K354	Digital TV Interferer Waveforms for ARB-generator IQ-Stream based on IEC62002/MBRAI,
SFU-K355	MediaFLO waveform for ARB generator IQ stream with video/audio content ser.no. required
SFU-K356	Cable interferers for ARB generator IQ stream spectrum only/not decodable ser.no. required
SFU-K357	Waveform for ARB-Generator as IQ-Stream important: contact 7BMP before offer Ibiquity-Licence and ser.no. required
SFU-K358	CMMB Waveforms IQ stream with video/audio ser.no. required
SFU-K359	DVB-T2 Waveforms IQ stream with video/audio ser.no. required
SFU-K362	ISDB-S WAVEFORMS IQ stream with data content ser.no.required
SFU-K363	Satellite Interferers IQ streams with satellite signals ser.no.required
U2	Harddisc upgrade kit 160 GByte (Upgrade in service dept. only)
