Narda 3001-10

Product Details

Model:

3001-10

Manufacturer:

Narda

Category:

Couplers

Condition:

Used

Availability:

In Stock - Ready to Ship

Specifications

Brand:

Narda

Model:

3001-10

Product Description

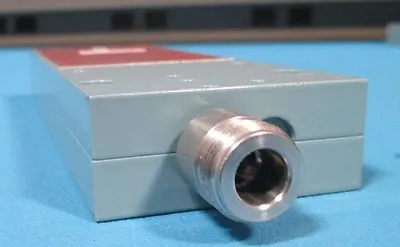

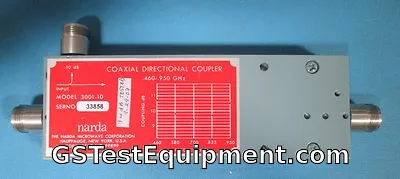

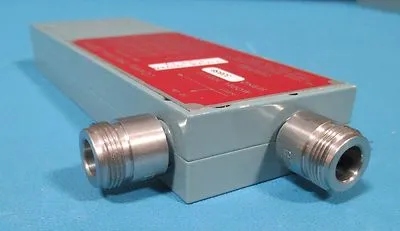

Narda 3001-10 Type N Coaxial Directional Coupler, 460 to 950 MHz, 10 dB

Description

3001-10 from Narda Microwave is a Directional Coupler with Frequency 460 to 950 MHz, Coupling 10 dB, Average Power 200 W, Directivity 30 dB, Insertion Loss 0.7 dB. Tags: Module with Connectors, Directional Coupler.

Key Features & Specifications

Model Number	3001-10
Low Frequency (GHz)	0.5
High Frequency (GHz)	1.0
Nominal Coupling (dB)	10
Minimum Directivity (dB)	30
Insertion Loss Coupled Pwr Excl. (dB) 1.7 - 12.4	0.20
True Insertion Loss (dB)	0.70
VSWR Maximum for Primary Line	1.15
VSWR Maximum for Secondary Line	1.15
Calibration (Freq GHz)	0.460, 0.580, 0.700, 0.825, 0.950
Absolute Calibration Accuracy dB (per 10 dB step)	+/- 0.1
Maximum Deviation from Nominal (dB)	+/- 1.2
Power Incident (Watts)	200
Pwr Reflected (Watts)	50
Peak Power (kW)	10
Maximum Weight (lbs)	1.2
Maximum Weight (kg)	0.54

Sold as pictured, no additional software, manuals or accessories provided.
