Description

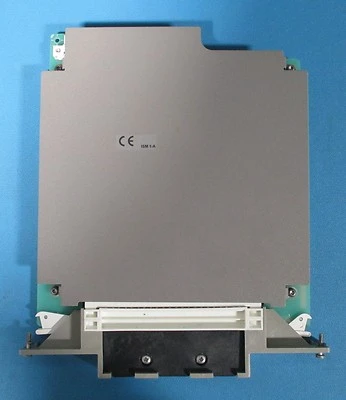

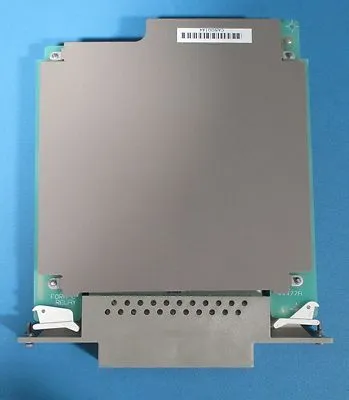

The Form-C Relay Module
provides seven independent Form-C Single-Pole-Double-Throw relays for
general purpose switching and control of external devices. With an
external power supply, you can use the module to drive remote RF,
coaxial, and microwave devices such as the Agilent 876xx, Agilent 8710xx
series, and mercury relays. This module is normally set up to use an
external power supply for voltages up to 250V DC, and can be easily
configured to use the internal 5V DC power supply. In applications where
the module's voltage or current specifications are going to be exceeded,
use the module to drive a properly rated external relay to switch those
signals.
|
Key Features & Specifications
· Switching up to
2A, 250V
· 7
Single-Pole-Double-Throw relays module
· Armature
latching relay
· Thermal Offset:
<3uV
· Maximum Scan
Rate: 43 chan/sec
· Maximum Voltage:
250V
· Maximum Current:
2A
· Maximum Power -
Per channel: 60W, 125VA
· Maximum Power -
Per module: 420W or 875VA
· Initial Closed
Channel Resistance: < 1 Ohm
|
