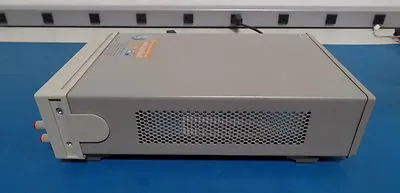

HP / Keysight / Agilent 6612C

Agilent/Keysight: 6612C 40 Watt System Power Supply, 20V, 2A GPIB Precision

The Keysight 40W, single output 6612C is a versatile low-power solution designed for demanding applications, and is a one-box solution that includes measurement capabilities and built-in GPIB and RS-232 interfaces.

Output ratings

·                     Voltage: 0 to 20 V

·                     Current: 0 to 2 A

Programming accuracy at 25°C ±5°C

·                     Voltage: 10 m V

·                     +Current 0.05% + 1 m A

Ripple & noise (20 Hz to 20 MHz)

·                     Voltage rms: 0.5 mV

·                     Voltage Peak-to-Peak: 3 mV

·                     Normal mode rms: 1 mA
