Description:

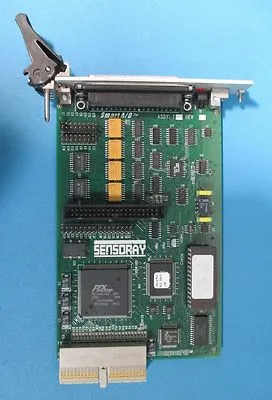

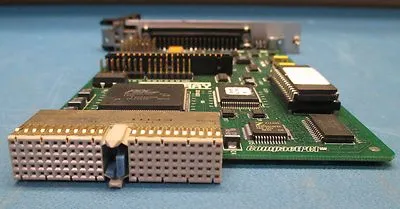

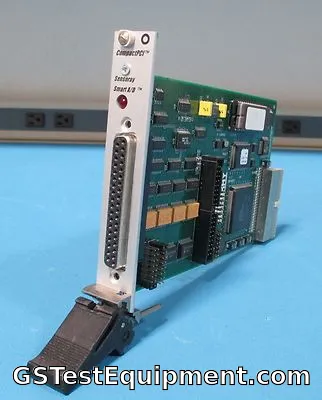

Sensoray Models 719 offer a cost-effective way to
acquire sensor data for any Compact PCI system. It features 16-bit
resolution from 16 channels, each individually programmable for a
different sensor type. Analog-to-digital conversion is performed in under
22 milliseconds, providing 45 channels per second scan rate.
The 719 adapters plug directly into any 3U slot of a
Compact PCI computer. Linearization, calibration, and sensitivity are
software programmable, eliminating trim potentiometers and the need for
board access. Sensor field wiring is accomplished with a 40-conductor
flat cable and remotely mountable screw- termination board, either model
7409TB or model 7409TDIN with DIN rail mounting hardware.
|
Key Features & Specifications
·
Supports thermocouples, RTD’s, strain gauges,
voltage in, 4-20 mA, thermistors, and resistors
·
16 differential input channels plus sensor
excitation
·
Each channel is software programmable for sensor
type, gain, low-pass filtering, scan rate
·
Auto-calibration eliminates trimpots
·
Low power consumption
|
