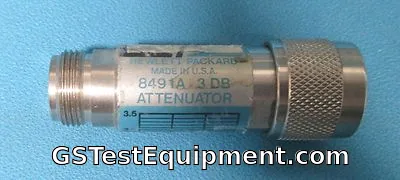

HP / Keysight / Agilent 8491A

Description

The Agilent 8491A-003 coaxial fixed attenuator provides precision attenuation, flat frequency response and low SWR over broad frequency ranges. The attenuator has type-N connectors and nominal attenuation of 3 dB. This attenuator is swept-frequency tested to ensure specification compliance at all frequencies.

Key Features & Specifications

·                                 Frequency Range: DC to 12.4 GHz

·                                 Maximum SWR: 1.2 to 4 GHz, 1.3 to 12.4 GHz

·                                 Maximum Input Power: 2 W (average), 100 W (peak)

·                                 Connector: Type-N male, female
